Single Mode OS1 FC APC Simplex SM 0.9mm Fiber Optic Cable Yellow 3 Meter Length

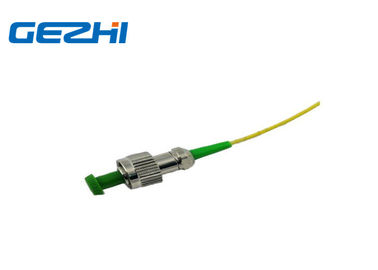

Large Image : Single Mode OS1 FC APC Simplex SM 0.9mm Fiber Optic Cable Yellow 3 Meter Length

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a Plastic bag
Delivery Time:	1~3working days
Supply Ability:	100000pcs per week

Contact Now

Detailed Product Description

Product Name:	Fiber Patch Cables	Mode:	Single Mode
Cores:	Simplex	Polishing:	FC/APC
Length:	Customised	Application:	FTTB
High Light:	fiber cable accessories , fiber optic cable accessories

Single Mode OS1 FC APC Simplex SM 0.9mm Fiber Optic Cable Yellow 3 Meter Length

FC Fiber Optic Pigtail was one of the most popular single-mode Pigtails. It use a 2.5mm ferrule,

but some of the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you

must make sure you have the key aligned in the slot properly before tightening. It's been mostly

replaced by SC and LC. However,due to easy assemblies and installation,

Features

Low Insertion Loss
High Return Loss
Good Repeat ability
Good Exchange ability
High Temperature Stability
8 Degree Angled physical contact polishing (APC)

Application

CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX networks

Specification

Connector type	LC,SC,ST,FC.SC/APC,FC/APC,LC/APC.
Fiber Type	9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4
Cable Type	Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Single mode Master); ≤ 0.25dB (For Single mode Standard) ; ≤ 0.25dB (For Multi-mode) ; Tested by JDS RM 3750
Return Loss (For Single mode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeat ability	±0.1dB
Operating Temperature	-40°C to 85°C
Geometry Requirement (For Single mode)	Ferrule End face Radius: 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1

Ordering Information

FC / APC SM 9/125 SIMPLEX 0.9mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: FC, SC, LC, ST, MPO
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

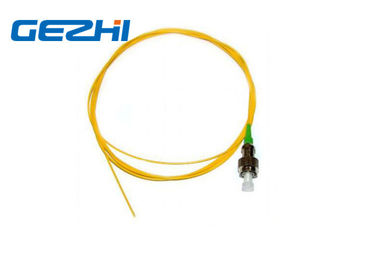

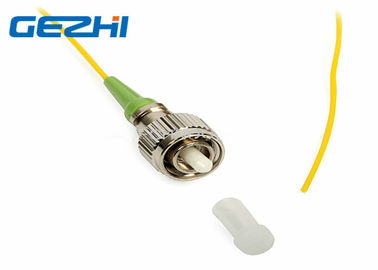

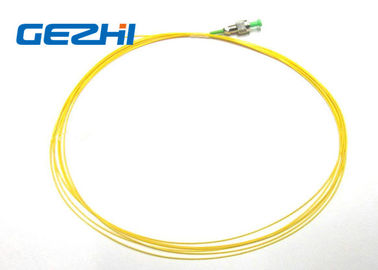

Pigtail with YELLOW cable jacket as below:

Single Mode OS1 FC APC Simplex SM 0.9mm Fiber Optic Cable Yellow 3 Meter Length 0
