Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Patch Cables | Mode: | Single Mode |
|---|---|---|---|
| Cores: | Simplex | Length: | Customised |
| Application: | FTTB | ||
| High Light: | fiber cable accessories,network accessories |
||

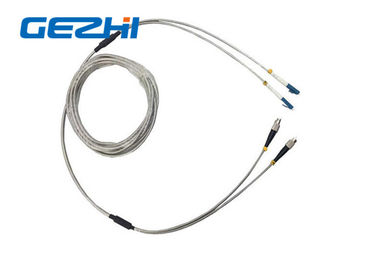

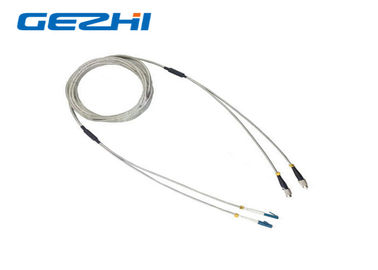

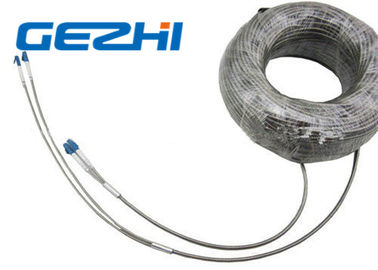

FTTA Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station
Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables
with 7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket. The
produces FULL ARMOURED patchcord for harsh environment , especially for rodent resistance and
bird resistance.
Features
Applications
Connector specification
| Item | Parameter |
| Connector | DLC/UPC |
| Insertion loss | ≤0.3dB |
| Return loss | ≥35dB |
| Fiber mode | Multi-mode,50/125um |
| Operating wavelength | 850nm,1310nm |
| Test wavelength | 850nm,1310nm |
| Repeat ability | ≤0.1dB |
| Interchange ability | ≤0.2dB |
| Durability | ≤0.2dB |
| Fiber length | 1m,2m.. Any length optional |
| Length and tolerance | 10cm |
| Operating temperature | -40~+85°C |
| Storage temperature | -40~+85°C |
GYFJH Cable
Structure
