FC - FC Simplex Fiber Optic Patch Cord 3.0mm , ODF FC / UPC Patch Cord SM LSZH

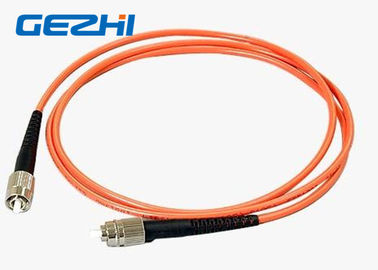

Large Image : FC - FC Simplex Fiber Optic Patch Cord 3.0mm , ODF FC / UPC Patch Cord SM LSZH

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a Plastic bag
Delivery Time:	1~3working days
Supply Ability:	100000pcs per week

Contact Now

Detailed Product Description

Product Name:	Fiber Patch Cables	Mode:	Single Mode
Cores:	Simplex	Polishing:	FC / UPC
Length:	Customised	Application:	FTTB
High Light:	fiber cable accessories , fiber optic cable accessories

FC - FC Simplex Fiber Optic Patch Cord 3.0mm , ODF FC / UPC Patch Cord SM LSZH

Fiber optic patch cord also called jumper, it is the connection cable between the equipment and fiber optic cabling wiring. It has a protective layer jacket, generally used in optical transceivers and terminal boxes.

NOTE:

Insertion loss<0.3dB
Return loss≥55dB
Durability=500matings
Operating temperature: -40°C~+75°C
Package: 1pc/ plastic bag
100% test
OEM label or brand ok
Lead time: about 3-5days

Cable assembly structure
FC - FC Simplex Fiber Optic Patch Cord 3.0mm , ODF FC / UPC Patch Cord SM LSZH

Features

lCan be connected with MT-RJ, SC, ST, FC, LC,connectors.
l Before delivery, will test each patch cord insertion loss
l customized assembly.

Application

optical fiber communication system
optical fiber access network
optical fiber data transmission
optical fiber CATV
local area network (LAN)
test equipment
optical fiber sensor

Specification

Item	Single mode(nomomodo)		Multimode(Multimodo)
Wavelength	1310&1550nm		850&1300nm
Fiber type	9/125um		62.5/125um,50/125um,50/125um OM3,50/125um OM4
Connector type	SC ST FC LC
Insertion loss on average	≤0.3dB	≤0.3dB
Max. insertion loss	≤0.5dB	≤0.5dB
Return loss	UPC≥55dB;APC≥65dB	≥20dB
Operating temperature	-40~+75℃
Storage temperature	-40~+85℃

Order information

Connector A	Connector B	Fiber type	Cable diameter	Cable jacket	Length
LC/UPC	LC/UPC	9/125um	0.9mm simplex	PVC	0.5m
LC/APC	LC/APC	50/125um	1.8mm simplex	LSZH	1m
FC/UPC	FC/UPC	62.5/125um	2.0simplex		3m
FC/APC	FC/APC	50/125um OM3	3.0mm simplex		5m
SC/UPC	SC/UPC	50/125um OM4	1.8mm duplex		...
SC/APC	SC/APC		2.0mm duplex
ST/UPC	ST/UPC		3.0mm duplex
...	...
