Duplex 1x2 Opto-Mechanical Switches

Large Image : Duplex 1x2 Opto-Mechanical Switches

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/RoHS/ISO9001
Model Number:	GZ-FSW-D1x2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	Plastic box
Delivery Time:	5~8work days
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	50,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Opto-Mechanical Switches	Length:	1meter
Connector:	FC/APC	Cable:	0.9mm
Wavelengt:	1310&1550nm	Voltage:	5V Or 3V
Highlight:	sfp optical transceivers , sfp transceiver modules

Duplex 1x2 Opto-Mechanical Switches

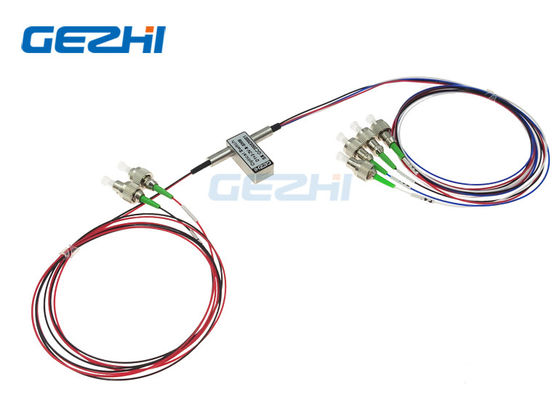

GEZHI Duplex 1x2 Opto-Mechanical Switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. The Duplex 1x2 Opto-Mechanical Switches offers ultra-high reliability and fast switching speed as well as bi-directional performance. The Duplex 1x2 Opto-Mechanical Switches are true switching solution for optical networking applications.

Features	Applications
Unmatched Low Cost Low Insertion Loss High Channel Isolation Highly Stable and Reliable	Optical Netrwork Protection/Restoration Optical Signal Routing Configurable Optical Add/Drop Transmitter and Receiver Protection

Duplex 1x2 Opto-Mechanical Switches Specification

Parameters		GZ-FSW-D1×2
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating avelength	nm	850/1300	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:1.0 Max:1.5	Typ:1.0 Max:1.5
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27.0×(W)12.0×(H)8.2

Pins of Duplex 1x2 Opto-Mechanical Switches

Type	State	Optical Route	Electric Drive				Status Sensor
D1×2			Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	A	P1-P2	--	--	GND	V+	Close	Open	Open	Close
		P1’-P2’
	B	P1-P3	V+	GND	--	--	Open	Close	Close	Open
		P1’-P3’
Non-latching	A	P1-P2	--	--	--	--	Close	Open	Open	Close
		P1’-P2’
	B	P1-P3	V+	--	--	GND	Open	Close	Close	Open
		P1’-P3’

Optical Route of Duplex 1x2 Opto-Mechanical Switches

Status A	Status B

Order Information of Duplex 1x2 Opto-Mechanical Switches

GZ-FSW-D1x2-X-XX-X-X-X-XX-X-XX

Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
S=SM M=MM	85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others	3=3V 5=5V	L=Latching N=Non- Latching	5=50/125 6=62.5/125 9=9/125 X=Others	25=250um 90=900um 20=2.0mm 30=3.0mm X=Others	1=1m 2=1.5m X=Others	0=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LC/APC

Dimension of Duplex 1x2 Opto-Mechanical Switches

Duplex 1x2 Opto-Mechanical Switches 2
