CWDM / DWDM / SDH / Ethernet system of 10G SFP fiber media converter

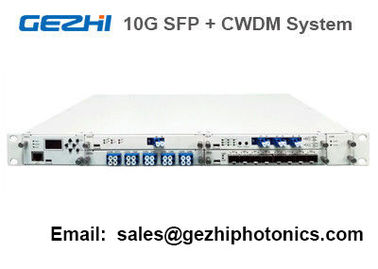

Large Image : CWDM / DWDM / SDH / Ethernet system of 10G SFP fiber media converter

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-10G CWDM System

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a foam with paper box
Delivery Time:	2~7working days
Supply Ability:	80000Channel per month

Contact Now

Detailed Product Description

Product Name:	10G CWDM System	Data Rate:	155M ~ 11.3Gb/s
Wavelength:	850,1310,1550nm CWDM Or DWDM	Connector:	LC Connector & RJ45
Fiber Type:	Duplex	Application:	SDH/Ethernet/CWDM/DWDM
Highlight:	coarse wavelength division multiplexer , cwdm module

CWDM / DWDM / SDH / Ethernet system of 10G SFP fiber media converter

Product Description

CWDM / DWDM / SDH / Ethernet system of 10G SFP fiber media converter 1

OEO Optical signal regeneration converter

OEO is optical signal regeneration conversion equipment based on the principle of O-E-O. The product is applied to optical signal wavelength conversion, single mode conversion, relay amplification, signal regeneration and other occasions and is widely used in the field of optical communication.

Product Feature

Full rate access:155Mbps~11.3Gbps;
Full service access:Ethernet, P/SDH,ATM,etc;
Support 3R function;
Single card supports 4-channel two-way/8-channel one-way business processing;
High level of integration by plug-in design,which saves space of cabinet;
Expansion is very convenient.

Performance Index

Parameters		Unit	Specifications
9.95~11.3Gbps	Workingwavelength	nm	850	1310	1550/CWDM/DWDM
	Transmission distance	km	0.3	10	40	80
	Input power range	dBm	-11~-1	-14~0	-16~0	-24~-7
	Output power range	dBm	-6~-1	-6~0	-1~+3	0~+4
2.5Gbps	Workingwavelength	nm	1310	1550/CWDM/DWDM		DWDM
	Transmission distance	km	20	40	80	120
	Input power range	dBm	-18~0	-18~0	-28~-10	-30~-10
	Output power range	dBm	-5~0	-2~+3	0~+5	0~+5
1.25Gbps	Workingwavelength	nm	850	1310	1550/CWDM/DWDM
	Transmission distance	km	0.55	10	40	80	120
	Input power range	dBm	-18~-3	-18~-3	-24~-1	-24~-1	-31~-9
	Output power range	dBm	-9~-3	-9~-3	-5~0	0~+5	0~+5
622Mbps	Workingwavelength	nm	1310	1550/CWDM		1550
	Transmission distance	km	20	40	80	120
	Input power range	dBm	-28~-8	28~-8	28~-8	-31~-9
	Output power range	dBm	-14~-8	-5~0	-3~+2	0~+5
155Mbps	Workingwavelength	nm	1310	1550/CWDM
	Transmission distance	km	20	40	80	120
	Input power range	dBm	-32~-3	-34~-9	-34~-9	-34~-9
	Output power range	dBm	-14~-8	-7~-2	-5~0	0~+5
Extinction ratio		dB	≥10
dithering performance			ConformITU-T G.825(2000)
SMSR		dB	> 30
power dissipation		W	＜10

Product Application

Optical Transmission

SDH
Ethernet
CWDM/DWDM
