8-wavelength CWDM Modules Two Fiber

8-wavelength CWDM Modules Two Fiber
8-wavelength CWDM Modules Two Fiber

Large Image :  8-wavelength CWDM Modules Two Fiber

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/RoHS/ISO9001
Model Number: C8MD471ULP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: paper box with foam
Delivery Time: 5~8work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 100000 Channel per month
Detailed Product Description
Product Name: CWDM Two Fiber Wavelength: 1470~1610nm
Fiber: Two Fiber Package: 19" 1U Rack Mount
Feature: Low IL Application: CATV
High Light:

sfp fiber optic transceiver


sfp transceiver modules

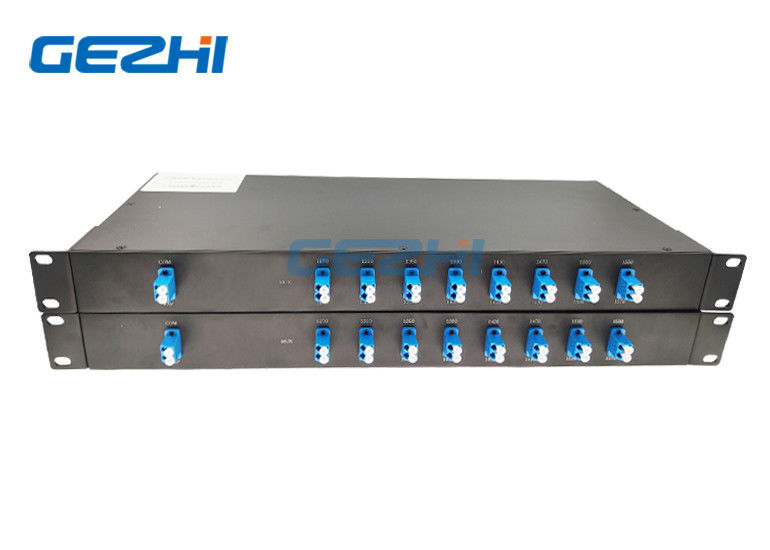

8-wavelength CWDM Modules Two Fiber


GEZHI 8-Wavelength CWDM Modules is a fiber optical components over duplex single-mode fiber. The CWDM was formed to meet the bandwidth and expansion needs of data centers. This 8 Channel CWDM Mux Demux Modules are developing optical link specifications that will enable cost-effective, low insertion loss. Its with 1470~1610nm wavelength and 19" 1U Rack Mount.


Features Appliecations
  • High Isolation
  • Low insertion loss, low PDL
  • High Reliability and Stability
  • Good channel-to-channel uniformity
  • CWDM System
  • PON NET Works
  • CWDM OADM Network



Parameter Value
Channels Number 2 4 8 16 18
Central Wavelength(nm) ITU-T Grid
Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
Channel Pass band(nm) 20
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8
MAX. 1.4 1.8 2.8 5.0 5.6
Ripple(dB) ≤0.3
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30
Isolation(dB) Adjacent Channel ≥30
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -20~+75
Storage Temperature(℃) -40~85
1.All the data above does not include connectors
2.For more details, please contact our sales
