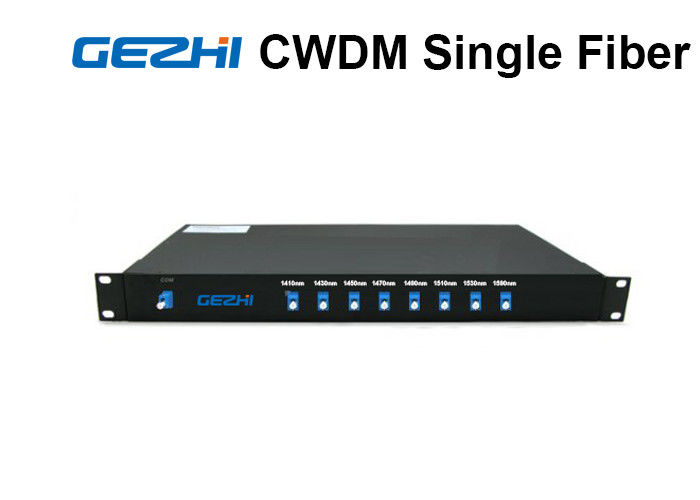

8 channels CWDM Mux Demux Simplex Uni - directional 1RU Rack Mount Single fiber

Simplex CWDM MUX

Multiplexer (MUX) work with demultiplexer (DEMUX) on the other side for single directional data transmission over one fiber.



GEZHI Photonics CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

GEZHI Photonics provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.



Front Panel Details



A Common port:

• LC, SC, ST and FC connectors available.

B Standard port 1310nm:

• Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.
• LC, SC, ST and FC connectors available.

C Standard port 1550nm:

• Allows a legacy 1550nm signal to pass. That is to say, it can carry ER optics, ZR optics, LX optics, ZX optics etc.
• LC, SC, ST and FC connectors available.

D Mux/Demux port for specific wavelengths:

• LC, SC, ST and FC connectors available.
• Compliant with the ITU G.657A1 standard as default.

E Express port:

• Enables the cascading of two CWDM mux/demux modules, doubling the channel capacity on the common fiber link.
• Channel Isolation is 15dB as default, 16dB ~40dB available on request.
• LC, SC, ST and FC connectors available.

F Monitor port:

• Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs.
• When finished monitoring, disconnect the instruments and the network is left undisturbed.
• LC, SC, ST and FC connectors available.
• Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.

Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the sameWe provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.



Item Details GEZHI Photonics 8 channels CWDM mux in one 1U RackCom port is simplex1U 19 inch Rack Mount HousingIt is equipped with configuration ports like Monitor, Express port according to customer choice (see options)Front panel is equipped with adapters according to customer choice (see options)Passive, no electric power required. (MTBF ca. 500 years)Low insertion lossSimple to install, requires no configuration or maintenanceISO 9001 manufacturing facility
