|Product Name:||Athermal AWG Rackmount||Channel Number:||40 Channels|
|Wavelength:||ITU Grid||Connector:||LC/SC/FC/ST (PC Or APC)|
|Fiber Type:||Simplex||Application:||CATV Network|
dense wave division multiplexer,
fiber optic multiplexer

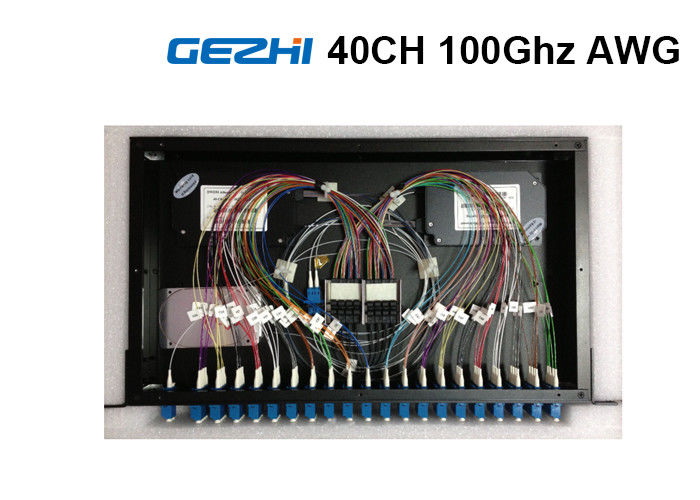

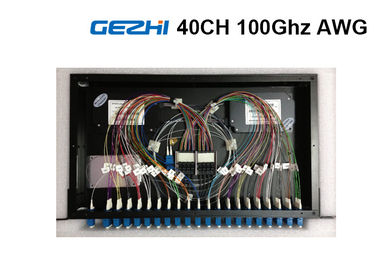

GEZHI AWG DWDM is by silica-on-silicon planar technology. The 40CH AWG Rackmount chips GEZHI Photonics used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information
A Common port:
B Monitor port:
C Express port:
D Standard port 1310nm:
E Mux/Demux port for specific ITU-Grid channels:
