Dual 88-CH 50GHz Flat-Top AWG DWDM Mux Demux with 1% Tap Monitor

China Dual 88-CH 50GHz Flat-Top AWG DWDM Mux Demux with 1% Tap Monitor supplier

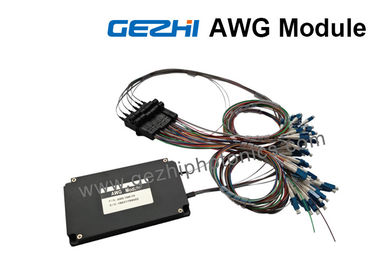

Large Image :  Dual 88-CH 50GHz Flat-Top AWG DWDM Mux Demux with 1% Tap Monitor

Product Details:

Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-40CH Athermal AWG

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 1pcs in a foam with paper box
Delivery Time: 2~7working days
Supply Ability: 80000Channel per month
Contact Now
Detailed Product Description
Product Name: Athermal AWG DWDM Module Channel Number: 40 Channels
Wavelength: ITU Grid Connector: LC/SC/FC/ST (PC Or APC)
Fiber Type: Simplex Application: DWDM Network

Dual 88-CH 50GHz Flat-Top AWG DWDM Module Mux/Demux with 1% Tap Monitor



GEZHI offers a full range of DWDM Mux/Demux(Dense Wavelength devision multiplexer) and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions, such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.


GEZHI AWG DWDM is by silica-on-silicon planar technology. The AWG chips GEZHI Photonics used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.


Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.


Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.


The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information


Front Panel Details
Dual 88-CH 50GHz Flat-Top AWG DWDM Mux Demux with 1% Tap Monitor


A Common port:

  • LC, SC, ST and FC connectors available.

B Monitor port:

  • Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs. When finished monitoring, disconnect the instruments and the network is left undisturbed
  • LC, SC, ST and FC connectors available.
  • Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.

C Express port:

  • Enables the cascading of two DWDM mux/demux modules, doubling the channel capacity on the common fiber link.
  • Isolation is less than 15dB as default, 16dB ~40dB available on request.
  • LC, SC, ST and FC connectors available.

D Standard port 1310nm:

  • Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.
  • LC, SC, ST and FC connectors available.

E Mux/Demux port for specific ITU-Grid channels:

  • LC, SC, ST and FC connectors available.

Mechanical Details for Housing ( Using Aluminum Box)
Dual 88-CH 50GHz Flat-Top AWG DWDM Mux Demux with 1% Tap Monitor

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.

High quality, affordable DWDM optical transceivers for DWDM Mux Demux

GEZHI Photonics provides a complete portfolio of optical transceivers to match DWDM Mux Demux.
Every optics is full compatible with Cisco, Juniper, Arista, Brocade, Dell, HP, Extreme, etc.
