1x2 CWDM OADM single Component

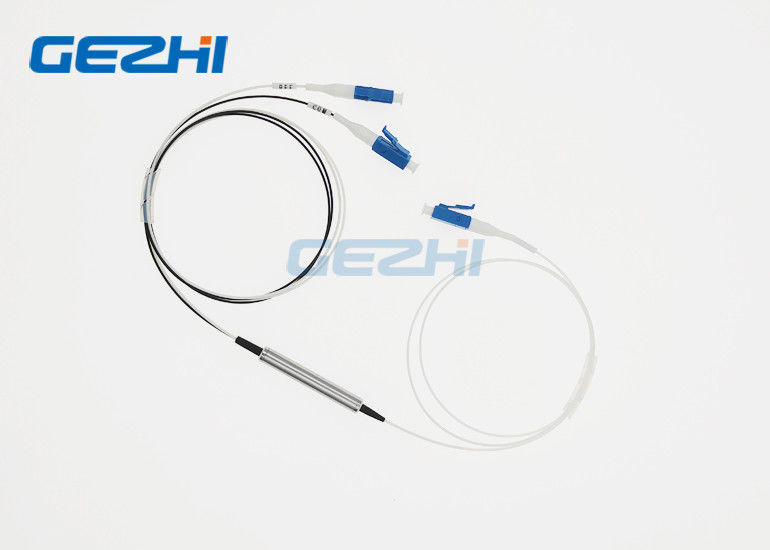

Large Image : 1x2 CWDM OADM single Component

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	1x2CWDMSUS

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	paper box with foam
Delivery Time:	5-8 work days
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	100000 Channel per month

Contact Now

Detailed Product Description

Product Name:	CWDM OADM	Wavelength:	1260~1620nm
Channel Spacing:	20nm	Cable:	0.9mm
Length:	0.5meter	Package:	Stainless Steel Tube
Highlight:	sfp optical transceivers , sfp fiber optic transceiver

1x2 CWDM OADM single Component

GEZHI's 1x2 CWDM OADM single Component is used to add or drop a particular wavelength and is ideal for telecommunicationsand networking. Additionally, this 1x2 CWDM OADM single Component can be used in high-power applications in CWDM systems.

Features	Applications
Low Insertion Loss High Channel Isolation Highly Stable & Reliable Epoxy-Free Optical Path Low Profile Packaging	Fiber Amplifier System CATV Fiberoptic Links Add/Drop Channels WDM Systems

Specification

Parameter		Specification
Channel Wavelength (nm)		1260 ~ 1620
Center wavelength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Pass Channel Insertion Loss (dB)		≤0.6
Reflection Channel Insertion Loss (dB)		≤0.4
Channel Ripple (dB)		<0.3
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-20~+75
Storage Temperature (℃)		-40~85
Package dimension (mm)		Φ5.5x34 (Bare fiber) Φ5.5x38 (900um Loose tube)

Note: 1. Customization is available.

2. Specified with connector
