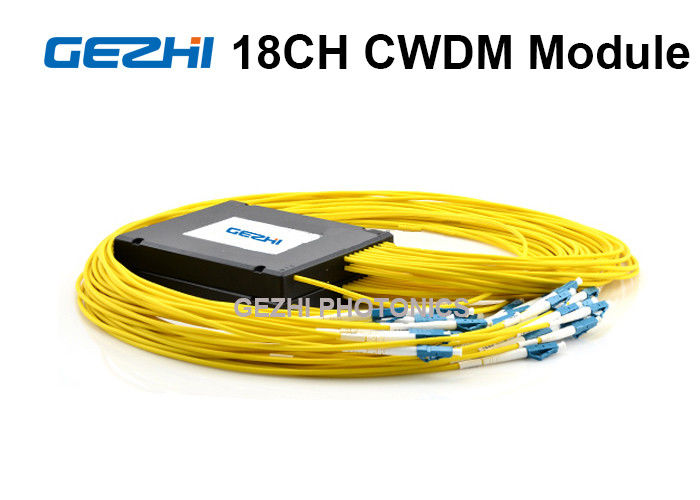

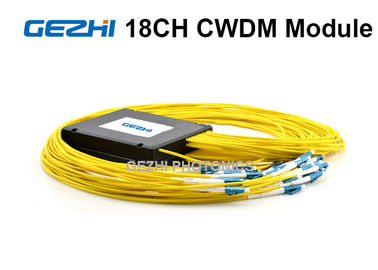

18 Channels Passive CWDM Mux Demux With Monitor Port , Pigtailed Module

18ch CWDM Mux+Demux in one splice/pigtailed ABS module, 1270-1610nm, w/monitor port, duplex LC/UPC , 2.0mm diamater



GEZHI Photonics Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down. The fs.com splice/pigtailed ABS module family, based on standard Thin Film Filter (TFF) technology with a proprietary packaging, offers you smallest component dimensions combined with an outstanding performance and reliability.Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WDM, CWDM and DWDM in optical metro edge and access networks.



Each fiber pigtails of inputs and outputs are labeled with wavelengths that is used to indicate the wavelengh of the individual CWDM transceivers. There are four holes to fix the pigtailed module with your device.




GEZHI Photonics quality assurance by using high-quality CWDM multiplexers, Our components fulfill or exceed standard market specifications for optical components. It may still not be entirely obvious how different parameters like isolation are more closely defined. The following diagram illustrates the most important parameters, following the "red box model", in accordance with ITU. The channel, including its bandwidth and isolation as defined by the component specifications, delineates a box. The measured transmission spectrum of each channel has to be above the box. Under no circumstances can it interfere with any neighboring box (channel). Therefore, isolation and insertion losses have to be maintained within the borders set out by the defined center wavelengths and bandwidth.
