|Product Name:||100GHz-32ch Athermal AWG||Channel Number:||32 Channels|
|Wavelength:||ITU Grid||Connector:||LC/SC/FC/ST (PC Or APC)|
|Fiber Type:||Simplex||Application:||DWDM Optical Networking|
dense wave division multiplexer

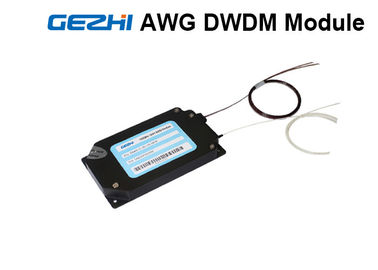

GEZHI Photonics offers a full range of Thermal/Athermal AWG products, including 50GHz, 100GHz and 200GHz Thermal/Athermal AWG. Here we present the generic specification for the 100GHz-32ch Athermal AWG Optical Module C-Band in Passive DWDM System MUX/DEMUX component supplied for use in DWDM system.
Athermal AWG (AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks.
GEZHI Photonics’ Athermal AWG (AAWG)provide excellent optical performance, high reliability, ease of fiber handling and power saving solution in a compact package. Different input and output fibers, such as SM fibers, MM fibers and PM fiber can be selected to meet different applications. We can also offer different product packages, inluding special metal box and 19” 1U rack mount.
The planar DWDM components (Thermal/Athermal AWG) from GEZHI Photonics are fully qualified according to Telcordia reliability assurance requirements for fiber optic and opto-electronic components (GR-1221-CORE/UNC, Generic Reliability Assurance Requirements for Fiber Optic Branching Components, and Telcordia TR-NWT-000468, Reliability Assurance Practices for Opto-electronic Devices).
A Common port:
B Monitor port:
C Express port:
D Standard port 1310nm:
E Mux/Demux port for specific ITU-Grid channels:
