1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems

China Gezhi Photonics Co.,Ltd certification
China Gezhi Photonics Co.,Ltd certification
Very easy to deal with, fast shipping, and the prices were excellent. What more could you ask for.

—— Charles Lundy

Very pleased with the service. Order arrived promptly and the product was exactly what I was expecting. I Will keep GEZHI Company in my Favorite List.

—— Lewis

As a repeat customer, I can testify that buyers can expect fair prices, timely deliveries usually faster than promised, and overall satisfaction with

—— Craig Sherman

I'm Online Chat Now

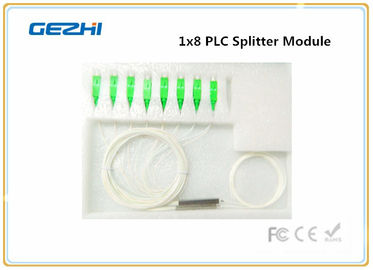

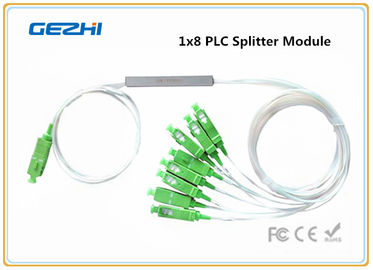

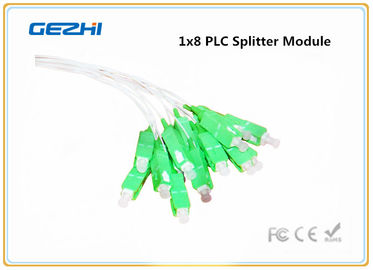

1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems

1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems
1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems 1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems 1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems

Large Image :  1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/TUV/UL/ RoHS/
Model Number: GZ-1x8 PLC Splitter Module
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Get Latest Price
Packaging Details: 2pcs in a foam with paper Box
Delivery Time: 1~4 work days
Payment Terms: L/C, T/T
Supply Ability: 60000 Piece/Pieces per month for Optical Cable Splitter
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Brand Name: GEZHI
Model Number: 1x8 PLC Splitter, Passive Optical Splitter: Lead Length 1m Or Customized
Waranty: 2 Years Passive Configuration: 1x8
Fiber Packing: Bare Fiber Or 900um Loose Tube Operating Wavelength: 1260-1650 Connector
Type: SC
High Light:

fiber optic beam splitter

,

fiber optic cable splitter



1 X 8 Bare Type Optical Cable Splitter / Fiber Optic Splitter For Fttx Systems

Decriptions
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

♦ Low Insertion loss

♦ Low PDL

♦ Compact Design

♦ Good channel-to-channel uniformity

♦ Wide Operating Wavelength: From 1260nm to 1650nm

♦ Wide Operating Temperature: From -40℃ to 85℃

♦ High Reliability and Stability

Applications

♦ FTTX Systems

♦ PON Networks

♦ CATV Links

♦ Optical Signal Distribution




Compliance

♦ Telcordia GR-1209-CORE-2001

♦ Telcordia GR-1221-CORE-1999

♦ RoHS

Technical Paremeter

Parameter 1xN PLC Splitter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 6.8 10.0 13.0 16.0 19.5
Max 3.8 7.1 10.3 13.5 16.5 20.5
Uniformity (dB) Typical 0.4 0.5 0.5 1.0 1.0 2.5
Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL(dB)Max Typical 0.1 0.1 0.1 0.2 0.2 0.2
Max 0.15 0.15 0.25 0.3 0.3 0.3

Wavelength
department loss(dB)

Typical 0.1 0.1 0.1 0.3 0.4 0.7
Max 0.2 0.3 0.4 0.6 0.8 1.0

Temperature
department loss

Typical 0.3 0.3 0.3 0.4 0.4 0.4
Max 0.5 0.5 0.5 0.5 0.5 0.5
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -40~ +85
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or Customized
Fiber Type G657A
Connector Type Customized
PLC Splitter Bare Fiber (mm) 4x4x40 4x4x40 4x4x40 4x7x50 4x7x50 4x12x60
PLC Splitter Blockless (mm) 4x4x40 4x7x60 4x7x60 4x12x60 6x20x80 6x40x100
PLC Splitter Module (mm) 100x80x10 100x80x10 100x80x10 120x80x18 120x80x18 141x115x18
PLC-splitter-rack-mountable(mm) 19’1U 2U Rack-Mount Box, LGX Box, ODF Box


Ordering information

GP XXX XX XX XX XX XX


Port
Configrition

Module type Cable type Fiber length Input connector

Output
connector

G=Gezhi
P=PLC


102=1x2
104=1x4
108=1x8
116=1x16
132=1x32
164=1x64
204=2x4
208=2x8
216=2x16
232=2x32
264=2x64

BF=Bare Fiber
BL=Blockless
MO=Module
LG=LGX Box
RM=Rack Mount
CB=Cassette Box
XX=Customized


00=none
09=900um
Loose tube
20=2.0mm
30=3.0mm

05=0.5m
10=1.0m
15=1.5m
30=3.0m
40=4.0m
50=5.0m
......

0=none
1=LC/UPC
2=LC/APC
3=SC/UPC
4=SC/APC
5=FC/UPC
6=FC/APC
7=LC/APC
X=Customized

0=none
1=LC/UPC
2=LC/APC
3=SC/UPC
4=SC/APC
5=FC/UPC
6=FC/APC
7=LC/APC
X=Customize



1 X 8 Bare fiber type fiber optic PLC splitter1 X 8 Bare fiber type fiber optic PLC splitter

Packaging & Shipping

1 X 8 Bare fiber type fiber optic PLC splitter
