| FROM: | QSFP+ | Label: | OEM |
|---|---|---|---|
| Data Rate: | 40Gb/s | Wavelenth: | 1550nm |
| Reach: | 100m | Diagnostics: | DDM/DOM |
| High Light: | fiber optic transceiver,transceiver fiber optic |
||
QSFP+ SR4 MPO 100M (300M option) INDUSTRIAL Temp for Metro networks and Data centers
GQ-40G-eSR4
40Gb/s QSFP+ SR4 Optical Transceiver, 100M
Features:
♦ Up to 300m on OM3 Multimode Fiber (MMF)
♦ Four-channel full-duplex transceiver modules
♦ Low power consumption<1.5W
♦ MPO connector receptacle
♦ Hot Pluggable QSFP form factor
♦ Operating case temperature 0°C to +70°C
♦ Built-in digital diagnostic function
Applications:
♦ InfiniBandQDR, DDR and SDR
♦ Data centers
♦ Metro networks
♦ Switches and Routers
Description:
The GQ-40G-eSR4 is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps over 300 meters of multi-mode fiber.
An optical fiber ribbon cable with an MPO/MTPTM connector at each end plugs into the QSFP module receptacle.
Mechanical Dimensions:

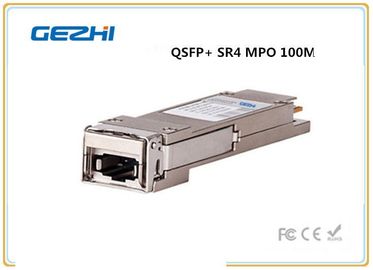

Picture:
Specification:
| P/N | 4X10.3G QSFP+ SR4 |
| Datarate | 40G/ps |
| Distance | 300m |
| Wavelenth | 1550nm |
| Media | MMF |
| DDM/DOM | YES |
| Connector | MTP/MPO |
| Application | 40G Ethernet/ 40G Infiniband |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
Competitive Advantages:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Keep stock,Fast delivery
