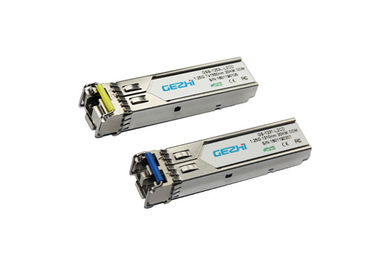

Small Form Factor Pluggable Transceiver 20km Distance

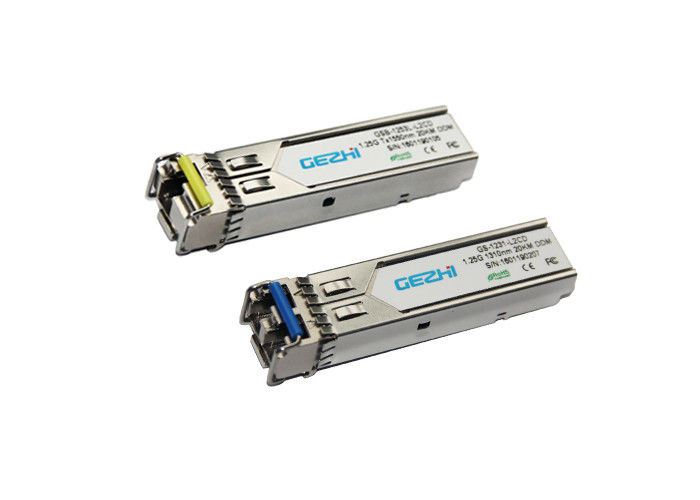

Large Image : Small Form Factor Pluggable Transceiver 20km Distance

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GSB-1253-L2CD

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	10 or 20pcs in Plastic tray
Delivery Time:	1~3working days after payment
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	60,000pcs per month

Contact Now

Detailed Product Description

Product Name:	SFP Single Fiber	Datarate:	1000Base (1.25Gb/s)
Wavelength:	Tx:1550nm/RX:1310nm	Distance:	20km
Connector:	LC Or SC	Application:	Fiber Channel (FC)
Highlight:	sfp optical transceivers , sfp fiber optic transceiver

Small Form Factor Pluggable Transceiver 20km Distance

GEZHI WDM or BIDI small form-factor pluggable (SFP), there are several synonyms for Bidi optics, such as: Bi-directional optics, WDM, BX-D / BX-U, Single Fiber and so on.

Features

Dual data-rate of 1.25Gbps/1.063Gbps operation
1550nm FP laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring (DOM/DDM)
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1 and ROHS
+3.3V single power supply
Operating case temperature range of 0°C to +70°C (Commercial)

Application

Gigabit Ethernet/Fast Ethenet
Switch to Switch interface
SDH/SONET/ATM
Router/Server interface
Fiber Channel
Other optical transmission systems

Specification:

P/N	GSB-1253-L2CD
Datarate	1.25Gbps
Wavelenght	Tx:1550nm/Rx:1310nm
Distance	20km
Transmitter	FP
Receiver	PIN
DDM/DOM	Yes
Media	SMF
Operating Temperature	0°C to +70°C

Competitive Advantages
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery

Small Form Factor Pluggable Transceiver 20km Distance 0
