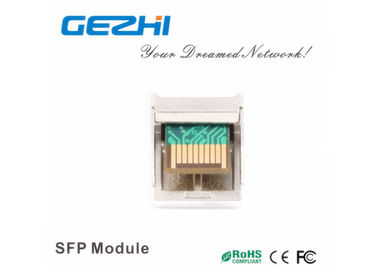

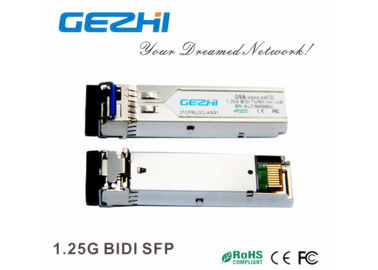

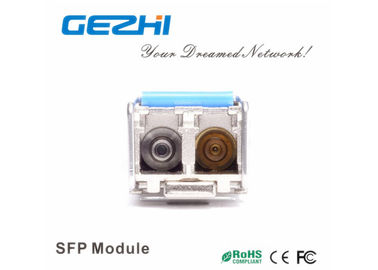

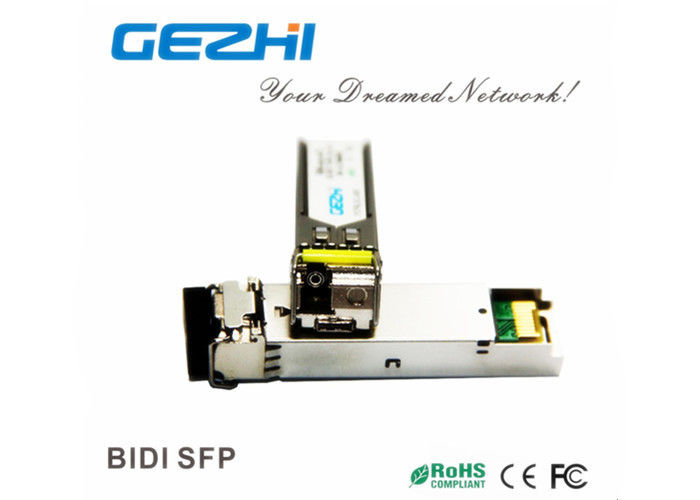

Singlemode Optical Transceiver Module BIDI SFP Transceiver 1.25g 1310/1550 10km

Large Image : Singlemode Optical Transceiver Module BIDI SFP Transceiver 1.25g 1310/1550 10km

Product Details:

Place of Origin:	China , Shenzhen
Brand Name:	Gezhi
Certification:	CE,RoHs,FCC
Model Number:	GSB-0135--L1x(D)

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	US $20.0 - 24.0 / Piece \| 1 Piece/Pieces (Min. Order)
Packaging Details:	10 units in a carton box with visual plastic window, which has been labelled and marked by Gezhi as default.
Delivery Time:	5-8 work days
Payment Terms:	L/C, L/C
Supply Ability:	130000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Name:	SFP Transceiver	Data Rate:	1.25G
Connector:	LC	Distance:	10KM
DDM:	Yes	Certification:	CE,RoHs,FCC
Highlight:	sfp optical transceivers , sfp fiber optic transceiver

Singlemode Optical Transceiver Module BIDI SFP 1.25g 1310/1550 10km

Features

Up to 1.25Gb/s data links
FP laser transmitter and PIN photo-detector
Up to 20km on 9/125µm SMF
Hot-pluggable SFP footprint
Duplex LC/UPC type pluggable optical interface
Low power dissipation
Metal enclosure, for lower EMI
RoHS compliant and lead-free
Support Digital Diagnostic Monitoring interface
Single +3.3V power supply
Compliant with SFF-8472

Operation conditions

Case operating temperature
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C

Parameter

Brand	Gezhi
P/N	GSB-0135--L1x(D)
Form Factor	SFP BIDI
Wavelength	1310nm/1550nm
Distance	10km
Data Rate	1.25 Gb/s
Connector	LC
Power Supply	3.3V
Maximum Power Consumption	1.5W
Operating Temperature	0°C to 70°C
DDM / DOM	YES
Warranty	1 year
Certification	CE / FCC / RoHS / TUV / UL

Singlemode Optical Transceiver Module BIDI SFP Transceiver 1.25g 1310/1550 10km 0

Dimensions of LC 1.25G 10km BiDi Module 1310nm/1550nm 1.25G BIDI SFP 10km DDM

Product Description

Every transceiver module is individually tested on full range of Gezhi equipments, walks through the testing challenges and 100% compatibility.

1.25G BiDi Tx1310nm Rx1550nm LC 10km 1.25gbps Single Fiber BIDI SFP Transceiver is compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 10KM in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C.

Application

Switch to Switch Interface
Fast Ethernet
Switched Backplane Applications
Router/Server Interface
Other Optical Links

Shipping

Gezhi can provide the both ourselves forwarder and customer appointed forwarder in the way of Air, Sea, Road. Which is carrier by FedEx, DHL, UPS, TNT and EMS. Your items are probably shipped at the same day (some transceivers can be delivered within 20 minutes). If we have no stocks in our warehouse, the ship will be delayed for 1-2 days. DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.

Singlemode Optical Transceiver Module BIDI SFP Transceiver 1.25g 1310/1550 10km 1

About Gezhi

Gezhi Photonics Co., Ltd is a professional manufacturer and provider in fiber Optical Products which are widely applied in Datacom, Telecom, CATV, FTTX, fiber Sensor etc.

Established in Nov 2011, GEZHI have two parts Products which meet full demand’ customer in Fiber Optics Components. One parts is Active Components (main products include SFP,SFP+,XFP,X2,Media converter,Fiber Siwtch,...) Another parts is Passive Components (mainly products is (CWDM/DWDM,Athermal AWG Module,Optical Switch,Optical Circulator/Isolator...)

Singlemode Optical Transceiver Module BIDI SFP Transceiver 1.25g 1310/1550 10km 2
