LR4 40G QSFP+ Module Wavelength 1270~1330nm 10KM Transmission Distance

LR4 40G QSFP+ Module Wavelength 1270~1330nm 10KM Transmission Distance

Features:

♦ Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

♦ QSFP+ MSA compliant

♦ Compliant with QDR/DDR Infiniband datarates

♦ Up to 11.2Gbps data rate per wavelength

♦ 4 CWDM lanes MUX/DEMUX design

♦ Up to 10km transmission

♦ Operating case temperature: 0~70C

♦ Maximum 3.5W operation power

♦ RoHS compliant

Applications:

♦ 40G BASE-LR4 Ethernet Links

♦ Infiniband QDR and DDR interconnects

♦ Client-side 40G Telecom connections

Description:

This product is a transceiver module designed for 2m-10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, singlemode fiber (SMF) has to be applied in this module.

Ordering Information:

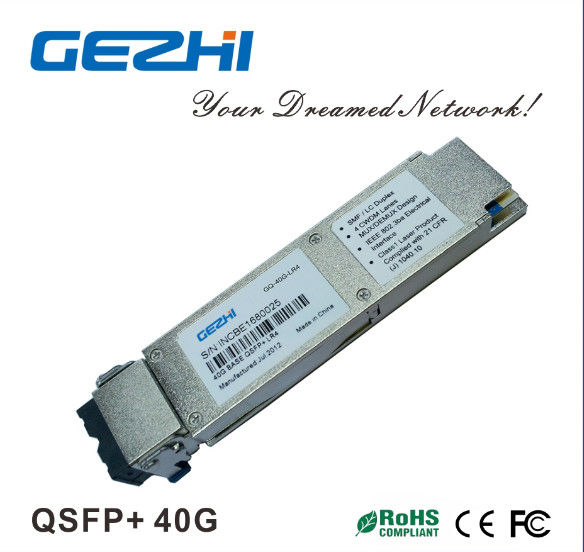

Product Images:

Package:
