FWDM T1625 R1310 / 1490 / 1550nm Fiber Optics Components 9/125 0.9mm 05m

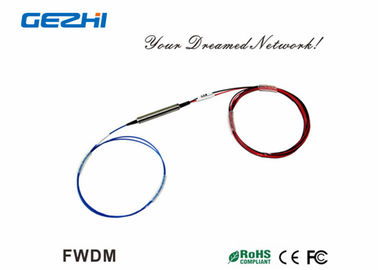

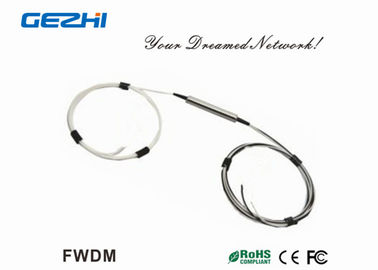

Large Image : FWDM T1625 R1310 / 1490 / 1550nm Fiber Optics Components 9/125 0.9mm 05m

Product Details:

Place of Origin:	China
Brand Name:	GEZHI
Certification:	CE RoHS
Model Number:	GZ-FWDM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	Retail box, PVC box, Customized
Delivery Time:	2~7working days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	50000Channel per month

Contact Now

Detailed Product Description

Central Wavelength (nm):	1625nm	Insertion:	≤0.8
Isolation（Pass）:	≥40	Wavelength:	T1625 R1310/1490/1550nm
Package:	Steel Tube	Fiber Length:	0.5M. 1m, 2m, Other
Highlight:	fiber optic network components , fiber optic cable components

1625 FWDM

FWDM is based on thin film filter technology, three wavelength window has a smooth channel bandwidth and high isolation, low insertion loss and high environmental stability and reliability etc, very suitable for use in optical amplifier, CATV and FTTH applications.

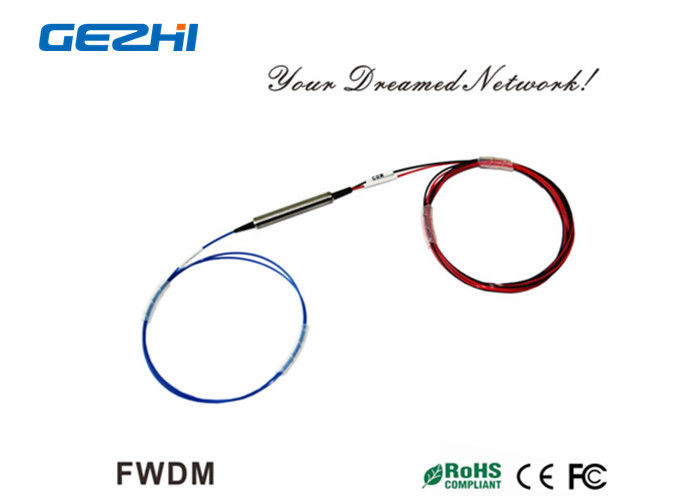

FWDM T1625 R1310 / 1490 / 1550nm Fiber Optics Components 9/125 0.9mm 05m 0

u Main features:

Telcordia GR1221,RoHS Compliant

Optical path epoxy free and excellent thermal stability

Low insertion loss and high isolation

Application:

WDM system

Optical amplifier

CATV network

Specifications:

Parameter		Specification
Central wavelength (nm)		1625
Pass band wavelength(nm)		1625+/-20
Reflection wavelength(nm)		1260~1570
Insertion	Pass (C→T)@PB	≤0.8
Loss	Reflect (C→R)@SB	≤0.6
Isolation(Pass)		≥40
Isolation(Ref)		≥15

Directivity (dB)		≥55
Return loss (dB)		≥45
PDL(dB)		≤0.10
Insertion loss thermal stability(dB)		≤0.005
Power handling (mW)		≤500
Operating temperature(℃)	0 ~ +70
Storage temperature(℃)	-40 ~ +85
Dimensions(mm)		Φ5.5xL38mm

Notes:

Room temperature test,without connector..

Add an additional 0.15dB loss per connector.
