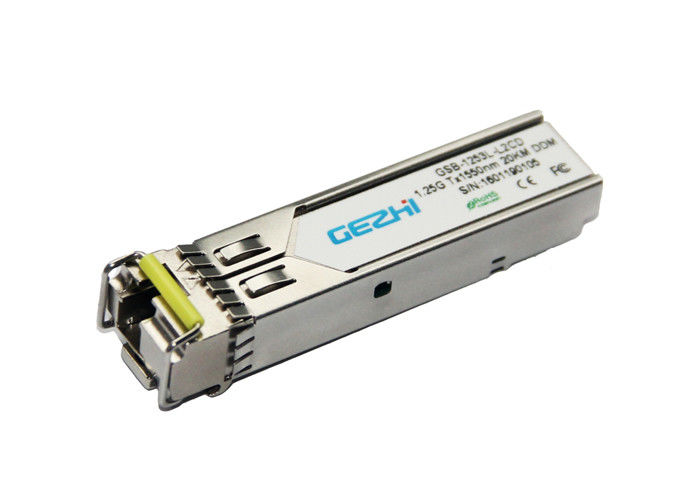

Bidirectional Fiber Optic Transceiver , Single Mode SFP Module

 Bidirectional Fiber Optic Transceiver , Single Mode SFP Module

Tx1550nm SMF BIDI SFP Optical Transceiver Module With LC / SC Connector

GEZHI WDM or BIDI small form-factor pluggable (SFP),  there are several synonyms for Bidi optics, such as: Bi-directional optics, WDM, Single Fiber and so on.

For a link you need 2 different optics, one that sends 1310nm and receives 1550nm and the other side of the fiber, which has a Bidi optic which sends 1550nm and receives 1310nm. In most cases these wavelengths are mentioned as Tx (transmitting) and Rx (receiving) on the label of the optic.

Features

• Dual data-rate of 1.25Gbps/1.063Gbps operation
• 1550nm FP laser and PIN photodetector for 3km transmission
• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
• Digital Diagnostic Monitoring
• Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1 and ROHS
• +3.3V single power supply
• Operating case temperature range of 0°C to +70°C (Commercial)

Application

• Gigabit Ethernet/Fast Ethenet
• Switch to Switch interface
• SDH/SONET/ATM
• Fiber Channel
• Router/Server interface
• Other optical transmission systems

Specification:

Competitive Advantages

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
