BIDI SFP Transceiver 10km Distance

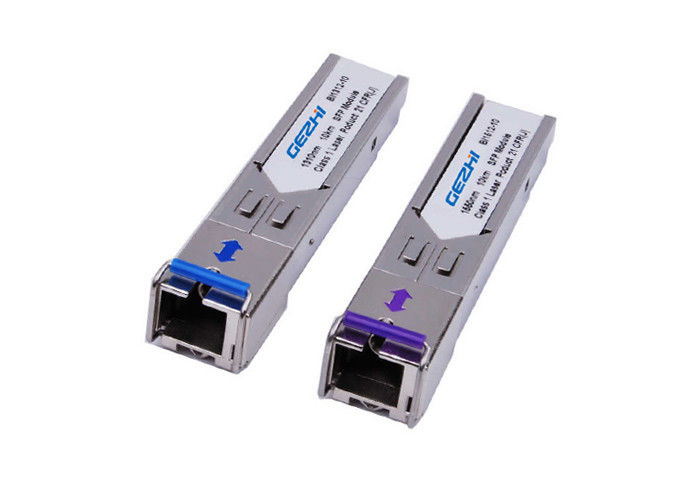

Large Image : BIDI SFP Transceiver 10km Distance

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GSB-1234-L1CD

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	10 or 20pcs in Plastic tray
Delivery Time:	1~3working days after payment
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	60,000pcs per month

Contact Now

Detailed Product Description

Product Name:	POE Gigabit Switch SFP	Datarate:	1.25Gbps
Wavelength:	Tx:1310nm/RX:1490nm	Distance:	10km
Connector:	LC Or SC	Application:	Data Bidirectional Communications
Highlight:	sfp fiber optic transceiver , sfp transceiver modules

BIDI SFP Transceiver 10km Distance

GEZHI WDM or BIDI small form-factor pluggable (SFP) is a compact optical transceiver, module used in optical communications for both telecommunication and data bidirectional communications applications. BIDI 1G optics are a small form factor pluggable module for Single Mode Fast Ethernet, Gigabit, Fiber Channel, SDH/SONET applications.

Features

Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photodetector for 10km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring (DDM/DOM)
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1 and RoHS
+3.3V single power supply
Operating case temperature range of 0°C to +70°C (Commercial)

Application

Gigabit Ethernet/Fast Ethenet
Fiber Channel
Router/Server interface
SDH/SONET/ATM
Switch to Switch interface
Other optical transmission systems

Specification:

P/N	GSB-1234-L1CD
Datarate	1.25Gbps
Wavelenght	Tx:1310nm/Rx:1490nm
Distance	10km
Transmitter	FP
Receiver	PIN
DDM/DOM	Yes
Media	SMF
Operating Temperature	0°C to +70°C

Competitive Advantages

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
