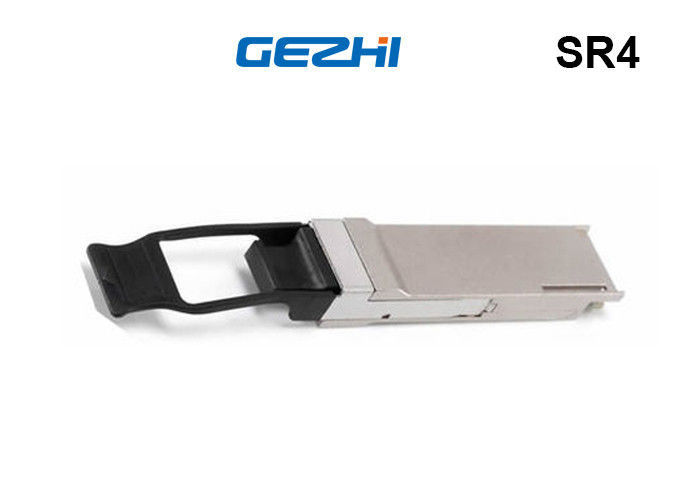

40Gbp/s 40G QSFP+ Module 850nm Wavelength 3.5W Operation Power

Large Image : 40Gbp/s 40G QSFP+ Module 850nm Wavelength 3.5W Operation Power

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	10 or 20pcs in Plastic tray
Delivery Time:	1~3working days after payment
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	60,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Quad Small Form-factor Pluggable	Datarate:	40GBASE
Wavelength:	850nm	Distance:	100m
Connector:	MPO	Application:	Data Communications
Highlight:	fiber optic transceiver , sfp optical module

40Gbp/s 40G QSFP+ Module 850nm Wavelength 3.5W Operation Power

40Gbp/s QSFP+ SR4 Optical Transceiver, 850nm MPO/MTP connector, Multi-mode Fiber

GEZHI offers a range of QSFP+ (Quad Small Form-factor Pluggable Plus) products such as transceivers and kabels. QSFP+ can reach dataspeeds up to 40Gbps by four channels of data in one Pluggable transceiver. Each channel can transfer data at 10Gbps and supports in total 40Gbps. This type of transceiver provides higher density and will reduce the cost of your network system.

Features

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-SR4 Standard
QSFP+ MSA compliant
Compliant with QDR/DDR Infiniband datarates
Up to 11.2Gbps data rate per wavelength
850nm Wavelength
QSFP+ Up to 100m transmission at OM3 fiber
Maximum 3.5W operation power

Application

40G BASE-SR4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 40G Telecom connections

Specification:

P/N	/
Datarate	40G/ps
Distance	150M
Wavelenth	850nm
Media	MMF
DDM/DOM	YES
Connector	MTP/MPO
Application	40G Ethernet/ 40G Infiniband
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V

Competitive Advantages:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
