|Product Name:||Optical Circulator||Wavelength:||1310nm Or 1550nm|
|Type:||3 Port||Package:||Stainless Steel TUbe|
|Connector:||LC/SC/FC/ST (PC Or APC)||Application:||DWDM System|
optical fiber components,
fiber optic cable components

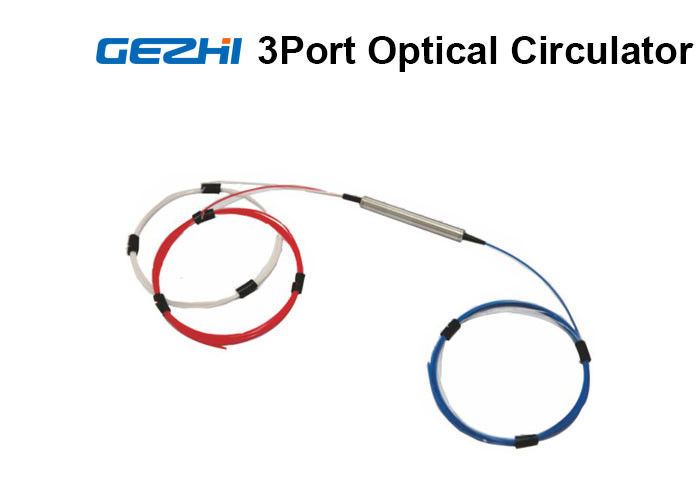

GEZHI Photonics’ Three-port 1x2 Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
GEZHI Photonics 3port Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
|Configuration||Port 1 to Port 2 to Port 3|
|Operation Wavelength (nm)||1310±30 or 1550±30 or 1585±30|
|Typical Isolation (dB)||≥50|
|Minimum Isolation (dB)||≥40|
|Cross Talk (dB)||≥50|
|Polarization Dependent Loss (dB)||<0.15|
|Polarization Mode Dispersion||<0.1|
|Power Handling (mW)||500|
|Opterating Temperature (℃)||-10~+75|
|Package dimension (mm)||Φ5.5xL50 or Φ5.5xL63|
Specifications may change without notice.
Above specification are for device without connector.
As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.
Circulator can be used to send optical signals through a single fiber in two directions.
