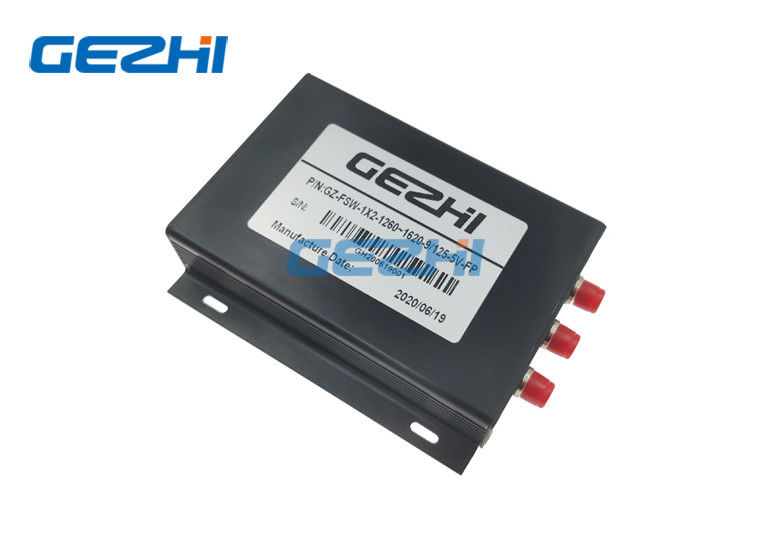

2:1 Optical Protection Switch

2:1 Optical Protection Switch
2:1 Optical Protection Switch

Large Image :  2:1 Optical Protection Switch

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-DSW
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: US $1 - 100 / Piece | 1 Piece/Pieces (Min. Order)
Packaging Details: paper box with foam
Delivery Time: 5~8work days
Payment Terms: T/T, Western Union
Supply Ability: 50000 pcs per monthe
Detailed Product Description
Features: Unmatched Low Cost Item Name: Optical Protection Switch
Connector: FC/APC Package: Metal Box
Control Mode: Button,RS232 Wavelength: 1260~1650nm
High Light:

sfp fiber optic transceiver


sfp transceiver modules

2:1 Optical Protection Switch


GEZHI 2:1 optical protection system  provides two diverse routes for the same link. On detection of a failure, the unit automatically switches to the redundant route.


Features Applications
  • High Isolation
  • Low Optical Distortions
  • High Reliability
  • Unmatched Low Cost
  • Epoxy-Free Optical Path
  • Channel Blocking
  • Instrumentation
  • Configurable Add/Drop
  • System Monitoring


2:1 Optical Protection Switch Order Information


Mode Wavelength Control Model Fiber Type Connector









N=Non- Latching









2:1 Optical Protection Switch Specification

Parameters   GZ-DSW-1x2
Wavelength Range nm 532~1064nm 1260~1650
Operating Wavelength nm 532/650/780/850/980 nm 1310/1490/1550/1625 nm
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 5V / 500mA
Control Mode / Button, RS232
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature -20~+70
Storage Temperature -40~+85
Dimension mm (L)104.0×(W)120.0×(H)28

Note: Customization is available.


2:1 Optical Protection Switch​ Optical Route

Status One Status Two

2x2 Bypass Mechanical Fiber Optic Switch 1310 / 1550nm Latching OXC system


2x2 Bypass Mechanical Fiber Optic Switch 1310 / 1550nm Latching OXC system

2:1 Optical Protection Switch​ Panel diagram

1x2 Mechanical Optical Switch Module 0
