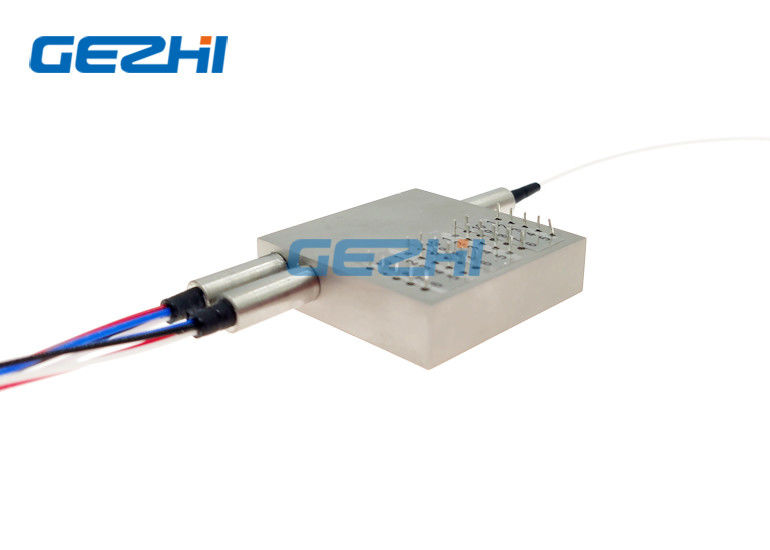

1x8 or 8x1 Opto-machanical switches

1x8 or 8x1 Opto-machanical switches
1x8 or 8x1 Opto-machanical switches

Large Image :  1x8 or 8x1 Opto-machanical switches

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/RoHS/ISO9001
Model Number: FSW-1x8
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: Plastic box
Delivery Time: 2~10work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 60,000pcs per month
Detailed Product Description
ITEM Name: Opto-machanical Switches Wavelength: 1260~1650nm
Connector: Customized Voltage: 3V Or 5V
Feature: Short Switching Time Application: System Monitoring
High Light:

sfp optical transceivers


sfp fiber optic transceiver

1x8 Opto-machanical switches


GEZHI 1x8 Opto-machanical switches is a kind of functional component, with the ability of switching optical route.The 1X8 Opto-Mechanical Optical Switches consists of 1 input and 8 output fiber ports that selectively transmits,redirects,or blocks optical power in a fiber optic transmission line.These all-optical switches are bi-directional and can be used in either the 1X8 or 8x1 direction.Fiber optical switches is designed for use in optical fiber communication networks and measurement instruments.



  • Low Loss and High Reliability
  • Epoxy-free on Optical Path
  • Compact Size
  • Single mode and Multi-mode
  • Ring Network
  • Remote Monitoring in Optical Network
  • Testing of Fiber,Optical Component
  • Secure Communications
  • R&D in Laboratory



Mini 1×8 Optical Switch Unit Typical
Operation Wavelength nm 850nm or 1260~1650nm
Insertion Loss dB <1.0(MM), <1.2(SM)
Wavelength Dependent Loss dB <0.25(MM), <0.30(SM)
Polarization Dependent Loss dB <0.1
Return Loss dB MM:>35, SM: >55
Cross Talk dB MM:>40, SM: >55
Switching Time ms Typical: 4 Max:10
Repeatability dB <±0.02
Durability Cycles >10 Million
Switching Type   Latching / Non-Latching
Optical Power Handling mW <500mW
Operating Voltage VDC 3V or 5V
Operating Temperature 0~+70
Storage Temperature -40~+85
Fiber Type / SM/MM Fiber
Package Dimension mm 35L x 35W x 9H

Note: 1. Customization is available.

2. Specified without connector, and add an additional 0.2dB loss per connector.
