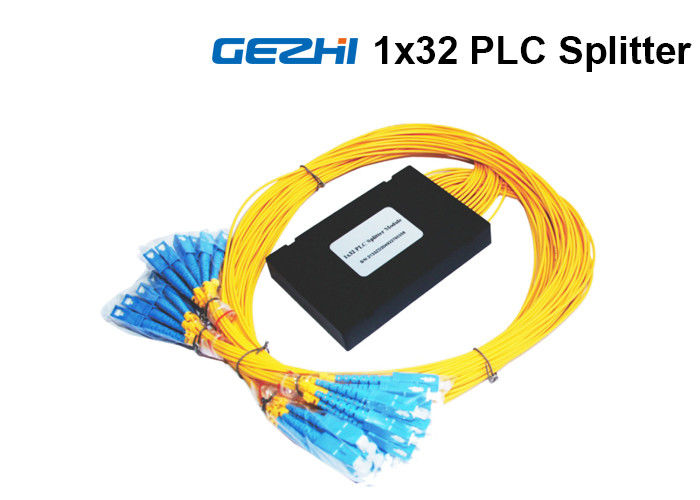

1x32 Way PLC Splitter Module

1x32 Way PLC Splitter Module
1x32 Way PLC Splitter Module

Large Image :  1x32 Way PLC Splitter Module

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-1x32 PLC Splitter Module
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 2pcs in a foam with paper Box
Delivery Time: 2~7working days
Supply Ability: 80000pcs per month
Detailed Product Description
Product Name: Blockless Splitter Module Wavelength: 1260~1620nm
Type: 1x32 Package: ABS Box
Connector: LC/SC/FC/ST (PC Or APC) Application: Passive Optical Networks (PON)
High Light:

fiber optic plc splitter


fiber optic cable splitter

1x32 Way PLC Splitter Module


1 input and 32 output fibers with an even split ratio, SC/UPC, 2.0mm or 3.0mm diameter fiber


GEZHI PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI Photonics provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 ABS Box type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.

The 1x32 ABS Box PLC Splitter with compact structure and small volume, is easily placed in the case body, such as cable transfer box, wiring in corridor, distribution box, or joint closure with some space reserved.


GEZHI 1×32 Fiber PLC Splitter with Plastic ABS Box Package supports G.657A Fiber, 900μm, 2.0mm, 3.0mm input and output fiber, and SC, LC, FC & ST connectors for choice.



  • Configuration Type: 1×32, SC/UPC connector
  • Good channel-to-channel Uniformity
  • 2.0mm G.657A1 for fiber input/ output
  • High Polarization Extinction Ratio
  • Low Input Polarization Sensitivity, Insertion loss≤16.9dB, PDL≤0.3dB
  • Compact design, Custom and Rugged Packaging Available
  • Operating temperature : – 40 to 85°C
  • Operating bandwidth: 1260- 1650nm
  • Telcorida GR-1209/ 1221 Qualified



  • PON Networks
  • CATV Links
  • FTTX Systems
  • Optical Signal Distribution

1x32 PLC Splitter ​Module Specification

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.0 1.5 2.0 2.5
Polarization Dependent Loss(dB) Typical 0.1 0.1 0.1 0.20 0.25 0.30 0.4
Polarization Dependent Loss(dB) Max. 0.15 0.2 0.3 0.3 0.3 0.4 0.5
Return Loss (dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.3 0.5 0.5 0.5

Temperature Stability

(-40~85 ℃)(dB)

0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40~80
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 N/A
Module Dimension (mm) 100×80×10 120×80×18 141×115×18
Mini-Module Dimension (mm) 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 100×40×6 N/A



Package & Mechanical Drawing
1x4_abs_plc_splitter_package.jpg   Fs ABS Mechanical Drawing 1.jpg
Mechanical Drawing
Accessories for Complete Outdoor 1×32 PLC Splitter
1x32 Way PLC Splitter Module 2

A: 1x32 ABS Box PLC Splitter
B: Outdoor Fiber Distribution Box
C: Fiber Adapter
D: 8-Fiber Pigitail for Output
E: Fiber Pigitail for Input
