1x1 Opto Mechanical Optical Switches ON / OFF Mini Fiber Optic device

Large Image : 1x1 Opto Mechanical Optical Switches ON / OFF Mini Fiber Optic device

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-1x1 Optical Switch

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	2pcs in a foam with paper Box
Delivery Time:	2~7working days
Supply Ability:	60000pcs per month

Contact Now

Detailed Product Description

Product Name:	Optical Switches	Wavelength:	1260~1650nm
Channel:	1x1	Control Type:	Latching Or Non-latching
Connector:	LC/SC/FC/ST (PC Or APC)	Application:	Channel Blocking
Highlight:	optical switch module , optical fiber switch

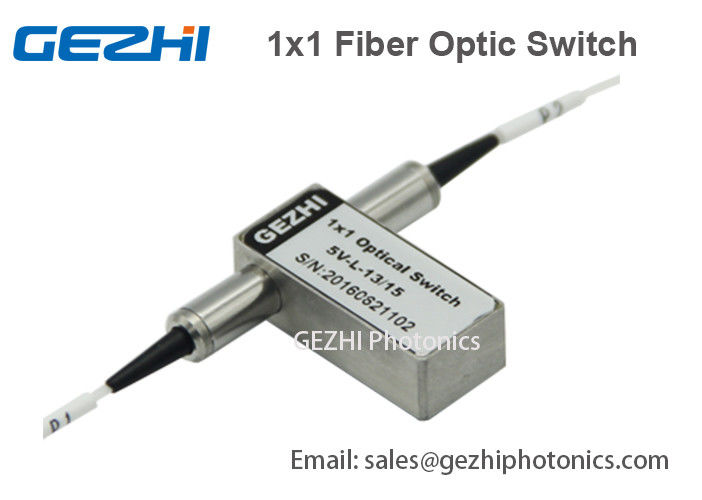

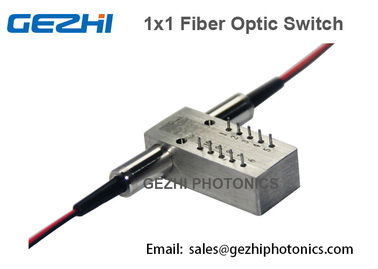

1x1 Opto-Mechanical Optical Switches ON / OFF Mini Fiber Optic device

GEZHI PHOTONICS 1x1 optical switch is designed for use in optical fiber communication networks and measurement instruments. The switch consists of two ports that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line.

The optical switch must be actuated to select or change between two states. As a result, it consumes low electric energy to operate the optical switch.

Features

Compact design, Miniature size
Short switching time
Low optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range
Seam-seal package
Highly Stable & Reliable
Epoxy-free on Optical Path
Single mode or Multimode optional
Fail-Safe Latching and Non-latching

Applications

Network switching
R&D in Laboratory
Fiber sensor
Channel blocking
System monitoring
Module and System Integration
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Specification

Parameters		GZ-1×1
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating avelength	nm	850/1300	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.5 Max:0.8	Typ:0.5 Max:0.8
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥65 SM≥75
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27.0×(W)12.0×(H)8.2

Pins

Type	Pin	Electric Drive				Status Sensor
1×1		Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	P1-P2	--	--	GND	V+	Close	Open	Open	Close
Latching	Light close	V+	GND	--	--	Open	Close	Close	Open
Non-latching	P1-P2	--	--	--	--	Close	Open	Open	Close
Non-latching	Light close	V+	--	--	GND	Open	Close	Close	Open

Optical Route

Status One	Status Two

Dimension

1x1 Opto Mechanical Optical Switches ON / OFF Mini Fiber Optic device 2
Order Information

Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
S=SM M=MM	85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others	3=3V 5=5V	L=Latching N=Non- Latching	5=50/125 6=62.5/125 9=9/125 X=Others	25=250um 90=900um 20=2.0mm 30=3.0mm X=Others	1=1m 2=1.5m X=Others	0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC
