10GBase Ethernet LR LC 10 Km 1310 nm XFP transceiver

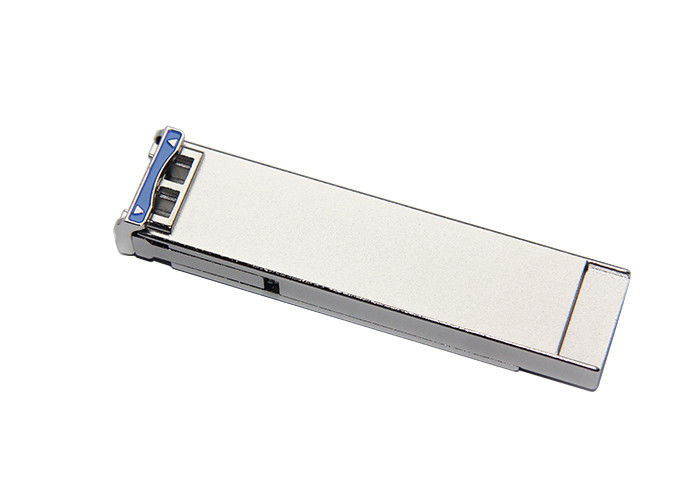

Large Image : 10GBase Ethernet LR LC 10 Km 1310 nm XFP transceiver

Product Details:

Place of Origin:	China ,Shenzhen
Brand Name:	Gezhi
Certification:	CE,RoHs,FCC
Model Number:	GX-H131-LRC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	US $1 - 65 / Piece \| 1 Piece/Pieces for 10g xfp transceiver
Packaging Details:	According to quantity ,we can offer 1 by one in box ,or 10pcs in plastic box or 20pcs.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T
Supply Ability:	60000 Piece/Pieces per month for 10g xfp transceiver

Contact Now

Detailed Product Description

Form Factor:	XFP	Interface Details:	10GBase Ethernet And OC-192/STM-64/10G SONET LR
Data Rate:	9.953 Gbps To 11.318 Gbps	Wavelength:	1310 Nm
Distance:	10 Km (6.2 Miles)	Temperature:	Commercial 0°C To 70°C
Digital Diagnostics (DDM):	Yes	Connection:	Single-mode Fiber (SMF)
Highlight:	fiber optic transceiver , transceiver fiber optic

10GBase Ethernet OC-192/STM-64/10G LR LC, 10 Km, 1310 nm XFP transceiver

10Gbps XFP Optical Transceiver, 10km Reach

Features:

♦ Supports 9.95Gbps to 10.5Gbps bit rates

♦ Hot-pluggable XFP footprint

♦ Maximum link length of 10km with SMF

♦ 1310nm Uncooled DFB laser

♦ XFP MSA package with duplex LC connector

♦ XFI electrical interface

♦ No reference clock required

♦ Compatible with RoHS

♦ Excelllent EMI performance

♦ Built-in digital diagnostic functions

♦ Temperature range: 0℃ to +70℃

♦ High reliability

Application:

♦ SDH STM I-64.1 at 9.953Gbps

♦ 10GBASE-LR/LW 10G Ethernet

♦ 1200-SM-LL-L 10G Fibre Channel

♦ 10GE over G.709 at 11.09Gbps

♦ OC192 over FEC at 10.709Gbps

♦ Other optical links, up to 11.1Gbps

Description:

Gezhi's GX-H131-LRC is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF.

The transceiver module comprises a transmitter with 1310nm uncooled DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Ordering Information:

P/N	GX-H131-LRC
Datarate	10Gbase XFP
Wavelenght	1310nm
Distance	10KM
Transmitter	VECEL
Receiver	PIN
DDM/DOM	Yes
Media	SMF
Operating Temperature	0°C to +70°C
