10G XFP Transceiver OC-192/STM-64/10G SONET LR LC 10 Km 1310 nm

10G XFP Transceiver OC-192/STM-64/10G SONET LR LC 10 Km 1310 nm
10G XFP Transceiver OC-192/STM-64/10G SONET LR LC 10 Km 1310 nm

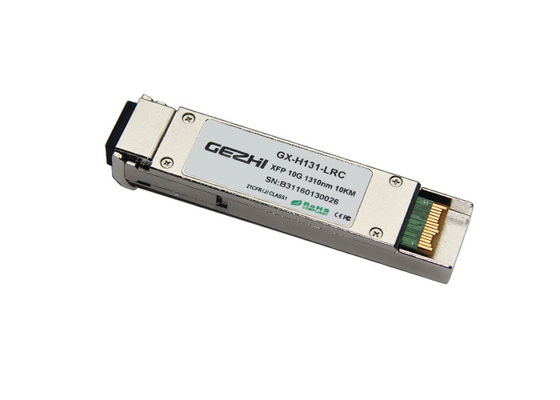

Large Image :  10G XFP Transceiver OC-192/STM-64/10G SONET LR LC 10 Km 1310 nm

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: 10G-XFP-1310-LRM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Get Latest Price
Packaging Details: 10 or 20pcs in Plastic tray
Delivery Time: 1~3working days after payment
Payment Terms: L/C, T/T
Supply Ability: 60,000pcs per month
Detailed Product Description
Form Factor: XFP Port Interface: 1 X 10GBase LC
Interface Details: 10GBase Ethernet And OC-192/STM-64/10G SONET LR Data Rate: 9.953 Gbps To 11.318 Gbps
Distance: 10 Km (6.2 Miles) Temperature: Commercial 0°C To 70°C
Digital Diagnostics (DDM): Yes
High Light:

fiber optic transceiver


transceiver fiber optic

10GBase Ethernet and OC-192/STM-64/10G SONET LR LC, 10 Km, 1310 nm XFP transceiver



10Gbps XFP Optical Transceiver, 10km Reach



♦ Supports 9.95Gbps to 10.5Gbps bit rates

♦ Hot-pluggable XFP footprint

♦ Maximum link length of 10km with SMF

♦ 1310nm Uncooled DFB laser

♦ XFP MSA package with duplex LC connector

♦ XFI electrical interface

♦ No reference clock required

♦ Compatible with RoHS

♦ Excelllent EMI performance

♦ Built-in digital diagnostic functions

♦ Temperature range: 0℃ to +70℃

♦ High reliability



♦ SDH STM I-64.1 at 9.953Gbps

♦ 10GBASE-LR/LW 10G Ethernet

♦ 1200-SM-LL-L 10G Fibre Channel

♦ 10GE over G.709 at 11.09Gbps

♦ OC192 over FEC at 10.709Gbps

♦ Other optical links, up to 11.1Gbps



Gezhi's GX-H131-LRC is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF.

The transceiver module comprises a transmitter with 1310nm uncooled DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.


Ordering Information:

Part Number Product Description
GX-H131-LRC 1310nm, XFP, 10Gbps, 10km, 0ºC ~ +70ºC





P/N 10G-XFP-1310-LRM
Datarate 10Gbase XFP
Wavelenght 1310nm
Distance 10m
Transmitter VESCEL
Receiver PIN
Media MMF
Operating Temperature 0°C to +70°C
