|Form Factor:||SFP+||Port Interface:||1 X 10GBase LC|
|Certification:||CE,RoHs,FCC||Temperature:||Commercial 0°C To 70°C|
sfp optical module,
transceiver fiber optic

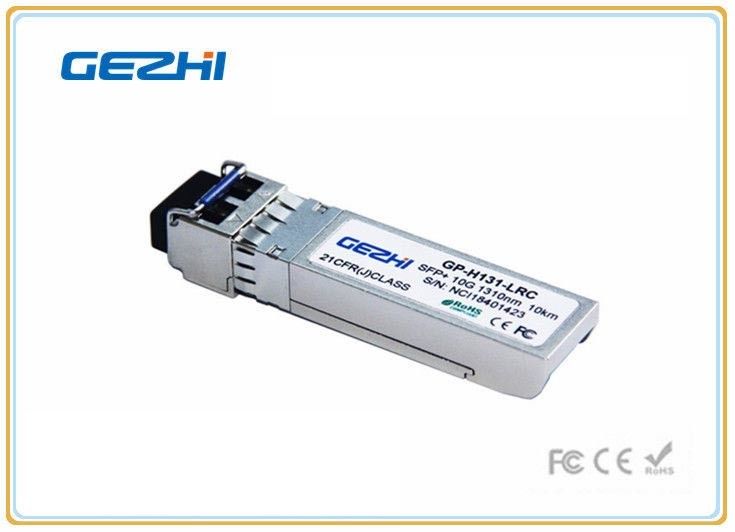

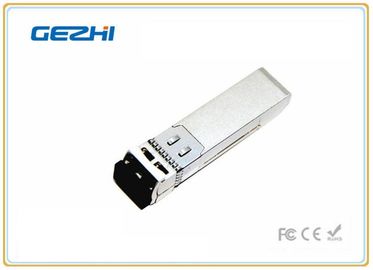

10GBase LR LC, 10 Km, 1310 nm SFP+ transceiver.
10Gbps SFP+ Optical Transceiver, 10km Reach
♦ Hot Pluggable
♦ Optical interface compliant to IEEE 802.3ae
♦ Electrical interface compliant to SFF-8431
♦ Low power consumption
♦ Applicable for 10km SMF connection
♦ All-metal housing for superior EMI performance
♦ 1310nm DFB transmitter, PIN photo-detector Operating case temperature: 0 to 70 °C
♦ Advanced firmware allow customer system encryption information to be stored in transceiver
♦ Cost effective SFP+ solution, enables higher port densities and greater bandwidth
♦ Other optical links
♦ 10GBASE-LR at 10.3125Gbps
♦ 10GBASE-LW at 9.953Gbps
This 1310 nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over
single mode optical fiber for link length 10km.
The SFP+ LR module electrical interface is compliant to SFI electrical specifications. The transmitter
input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.
The module provides differential termination and reduce differential to common mode conversion for
quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material
or up to about 150mmof standard FR4 with one connector
|Data Rate (max):||10Gb/s|
|Low End Case Temperature (°C)||- 5°C|
|High End Case Temperature (°C)||85°C|
|Applications:||10Gbps SFP+ Optical Transceiver, 10km Reach|
