| Product Name: | Fiber Patch Cables | Mode: | Single Mode |
|---|---|---|---|
| Length: | Customised | Application: | FTTB |
| High Light: | network accessories,fiber optic cable accessories |
||

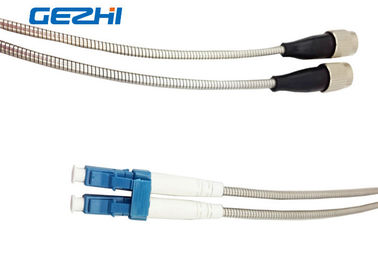

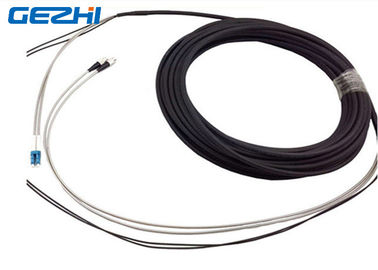

DFC - DLC 2 Core FTTA Fiber Optic Patch Cord , White And Black Single Mode Pigtail
Application
Mainly used in wireless base station horizontal and vertical cabling
Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data
transmission;
5, Meet various requirements of market and clients
Cable Parameters
|
Fiber count |
Cable dimension |
Cable weight |
Tensile/N | Crush N/100mm |
Min. Bend radius/mm |
Range of temperature/°C |
|||
| Mm | Kg/km |
Long term |
Short term |
Long term |
Short term |
Dynamic | Static | ||
| 2 | 7 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -100 |
| Note: | |||||||||
| 1. All the values in the table,which are reference only, are subject to change without notice. | |||||||||
| 2. The cable dimension and weight are subject to the simplex cable of 2.0mm outer diameter; | |||||||||
| 3. D is outer diameter of the round cable. | |||||||||
Connector Specification
| Item | Parameter |
| Connector | DLC/UPC |
| Insertion loss | ≤0.3dB |
| Return loss | ≥35dB |
| Fiber mode | Multi-mode,50/125um |
| Operating wavelength | 850nm,1310nm |
| Test wavelength | 850nm,1310nm |
| Repeat ability | ≤0.1dB |
| Interchange ability | ≤0.2dB |
| Durability | ≤0.2dB |
| Fiber length | 1m,2m.. Any length optional |
| Length and tolerance | 10cm |
| Operating temperature | -40~+85°C |
| Storage temperature | -40~+85°C |
GYFJH Cable
Structure:
