LC / APC Patch Cord MT - RJ to SC Singlmode Duplex Zipcord Without Clip Yellow

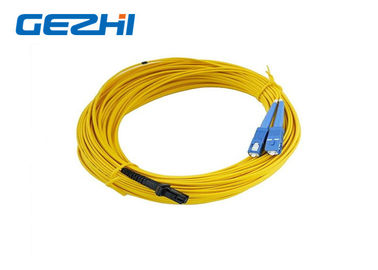

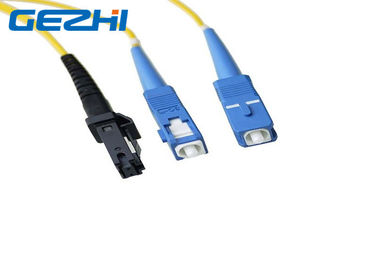

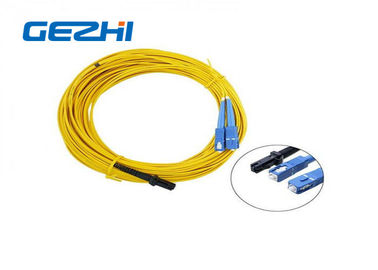

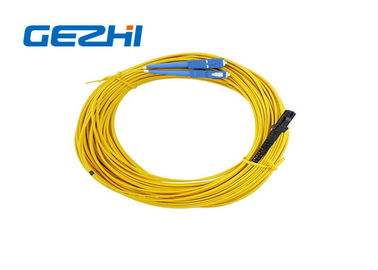

Large Image : LC / APC Patch Cord MT - RJ to SC Singlmode Duplex Zipcord Without Clip Yellow

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a Plastic bag
Delivery Time:	1~3working days
Supply Ability:	100000pcs per week

Contact Now

Detailed Product Description

Product Name:	Fiber Patch Cables	Mode:	Single Mode
Cores:	Simplex	Polishing:	LC / APC/ SC
Length:	Customised	Application:	FTTB
Highlight:	fiber cable accessories , fiber optic cable accessories

LC / APC Patch Cord MT - RJ to SC Singlmode Duplex Zipcord Without Clip Yellow

Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

Features

Low insertion loss
Repeat ability
High return loss
Mutual Insert performance
Good temperature stability
Strong tensile property
Cheap multimode fiber price,short distance transmission
Wide transmission bandwidth

Application

Fiber communication system
Fiber access network
Data transmission
CATV
LAN
Test equipment
Optical fiber sensor

Specification

Item	Standard,Master
Connector type	LC,SC,ST,FC.MPO, SC/APC, FC/APC,LC/APC.
Connector type	Duplex MTRJ/Female, MTRJ/Male
Fiber Type
	9/125 SMF-28 or equivalent (Singlemade) OS1
	50/125, 62.5/125 (Multimode) OM2&OM1
	50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord)
	Φ3.0mm, Φ2.0mm, Φ1.8mm
	Φ1.6mm PVC or LSZH
	Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master)
	≤ 0.25dB (For Singlemode Standard)
	≤ 0.25dB (For Multimode)
	Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB
	SPC ≥ 55dB
	APC ≥ 60dB (typ.65dB)
	Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius
	7mm ≤ R ≤ 12mm (For APC)
	10mm ≤ R ≤ 25mm (For Standard)
	Apex Offset ≤ 30 μm (For Master)
	Apex Offset ≤ 50 μm (For Standard)
	Undercut -50nm ≤ U ≤ 50nm
	Tested by DORC ZX-1

Ordering information

Boot (cable size)	Boot Color	Fiber Type	Cable number	Ferrule	Length
0.9mm 2.0mm 3.0mm	Black Biege Blue Gray White Yellow	9/125um SM 50/125um MM 62.5/125um MM OM3 OM4	Simplex Duplex Multi-fiber	PC APC	Customized
