Product Details:
Payment & Shipping Terms:
|
| Product Name: | Optical-Electrical-Optical Converter | Data Rate: | 10Gb/s |
|---|---|---|---|
| Standalone: | AC 220V OR DC -48V | Access Type: | 10G LAN |
| Connector: | XFP To XFP | Application: | Telecommunication Room |
| High Light: | optical fiber components,fiber optic cable components |
||

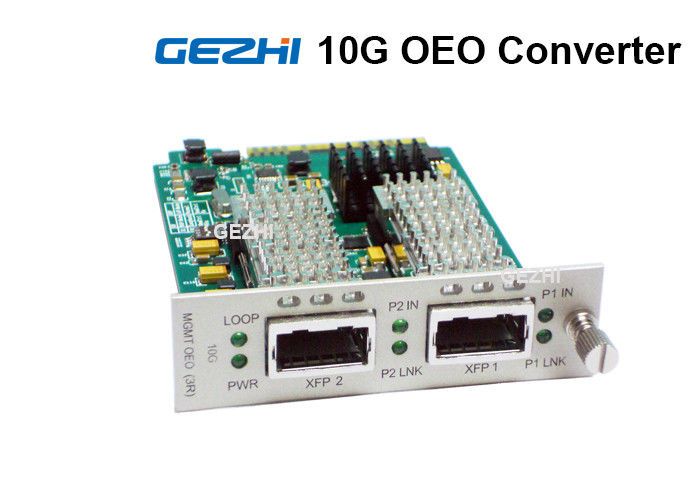

GEZHI Photonics Standalone 10G OEO Converter Repeater with XFP Slot to XFP Slot, which uses optical -electricity – optical conversion principle to realize optical signal regeneration, enabling of the optical signal amplification and regeneration, and wavelength conversion, with coarse / dense wavelength division multiplexing together to realized WDM transmission. It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.
| Performance Data | Technical Indexes |
| Transmission Speed | 8.5Gb/s-11.35Gb/s |
| Protocols | 8.5G Fiber Channel |
| SONET OC-192, SDH STM-64 (9.95Gbps) | |
| 10G WAN (10Gbps) | |
| 10G LAN (10.31Gbps) | |
| OTN OTU-2 (G.709) (10.70Gbps) | |
| 10G LAN with 255/237 FEC coding (11.09Gbps) | |
| 10G Fiber Channel (11.32Gbps) | |
| 10G POS | |
| Interface Type | XFP to XFP |
| Transmission Distance | XFP module: Up to 80Km |
| Maximum Packet | 14,880,950/S |
| Forwarding Rate | |
| power requirement | Rack-mountable : AC 85 ～ 220V OR DC -48V |
| Standalone: AC 110~220V OR -48V | |
| Power consumption: ≤4W | |
| Work Environment | Operating Temp: 0~ 50 ℃ |
| Storage Temp: -10~ 70 ℃ | |
| Humidity: 5%~90% ( non-condensing ) | |
| Dimension | Card : 115mm ( W ) × 78mm ( D ) |
| Standalone : 156mm ( W ) × 128mm ( D ) × 32mm( H ) |
GEZHI Photonics can also provide 2U Unified Platefrom Chassis for 10G OEO Card. Each card (10G SFP+ to SFP+, 10G XFP to SFP+,10G XFP to XFP ) can coexist together in this 2U 17-slot Managed chassis.
