Product Details:
Payment & Shipping Terms:
|

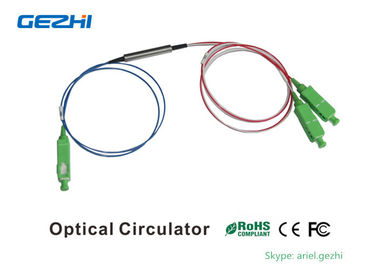

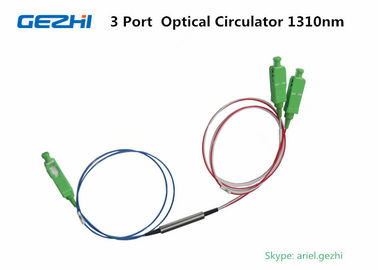

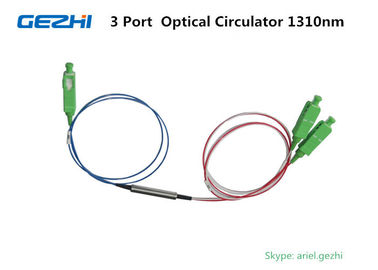

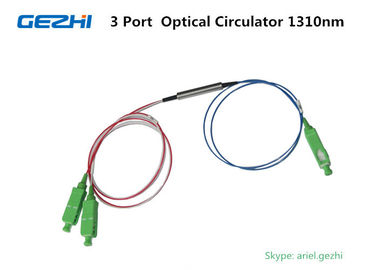

Product Name:: | 3 Port Optical Circulator | Wavelength: | 1310nm |
---|---|---|---|
Connector:: | SC/APC | Fiber Type: | 900um |
Fiber Lenght: | Customized | Type: | 3 Port |
Fiber Type: | 50/125 62.5/125 | Package: | 5.5 X 38 X 36mm |
High Light: | fiber optic network components,fiber optic cable components |
Introduction:
![]() |
Features
Application
![]() |
Technical Parameter
Parameter | 3 Port | 4 Port | ||
Operating wavelength (nm) | 1310, 1480,1550, 1585 (+/-30) |
1480,1550,1585, | C+L (1520~1620) | |
Isolation (λc,23℃ all sop) (dB) | ≥40 | ≥40 | ≥40 | |
Isolation (Over all λ, T, sop) (dB) | ≥35 | ≥35 | ≥30 | |
Insertion Loss | Grade P | ≤0.8 | ≤0.8 | ≤1.2 |
(λc,23℃ all sop)(dB) | Grade A | ≤1.0 | ≤1.0 | ≤1.3 |
PDL (dB) | ≤0.15 | ≤0.20 | ||
Return loss (dB) |
≥50 |
|||
PMD (ps) |
≤0.1 |
|||
Directivity |
≥50 |
|||
Power handling (mW) ≤300 | ||||
Fiber Type |
SMF-28e |
|||
Operating temperature (℃) |
0 ~ +70 |
|||
Storage temperature (℃) |
-40 ~ +85 |
Package | For bare fiber or 900um loose tube | φ5.5×L50(P2) | φ5.5×L68(P5) | φ5.5×L64(P8) | |
Dimensions(mm) | For 3mm cable | L98XW14.5XH8.5(P6) | L90XW20XH9.5(P9) | L80xW12xH10(P7) | |
* Insertion loss | is not include connector loss |
Ordering Information
CIR | X | XX | X | X | X | XX |
Port | Wavlength | Grade | Fiber Type | Fiber Length | In/Out Connector | |
3=3 Port |
1460 to 1620nm |
P=P Grade |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
GEZHI Photoncis is founded in 2011, which is a leading provider for optical active and passive products in China. We design,develop,manufacture and distribute the optical products to satisfy customer's need for optical communication in Ethernet,SDH/SONET,Video monitor,FTTH,WDM Netowrk, Access Network, CATV Network, EPON System etc.
Professional, delicated and passional, With reliable quality and competitive pricing,,GEZHI Photonics supply over-expected products and service to customers,In the past years, GEZHI have won the confidence and great reputation from domestic and oversea customers.
Equipment
Why GEZHI Photonics?
Not only supply high quality products, also promise the following service:
1. Providing proved inspection report for the products when delivery.
2. Providing product specification and detailed test report;
3. One year warranty. three monthes free exchange and one year free repairing.
4. Must reply within 24 hours after receiving customers’notice of quality problems.
5. Regularly survey,collect quality improvement suggestion from customers.
Your success is our biggest wishes. Any questions, please feel free to contact us. We will always provide perfect services to you.
