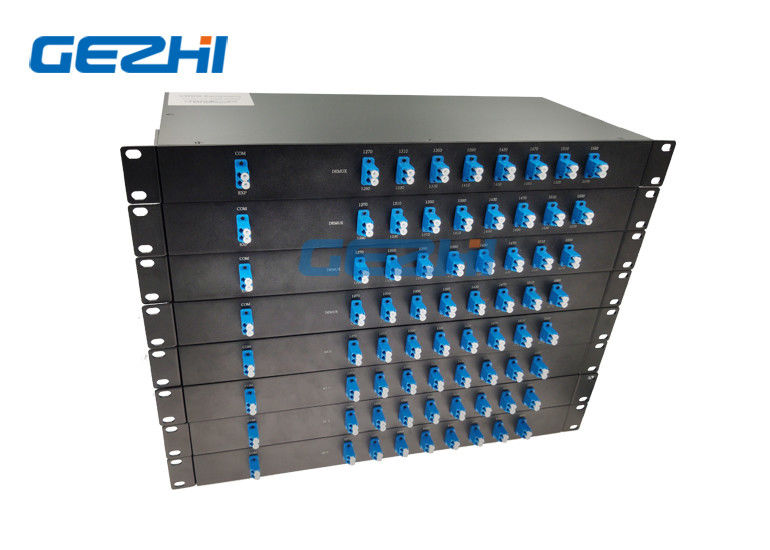

Rackmountable 16 Channel Fiber Optic DWDM Modules

Rackmountable 16 Channel Fiber Optic DWDM Modules
Rackmountable 16 Channel Fiber Optic DWDM Modules

Large Image :  Rackmountable 16 Channel Fiber Optic DWDM Modules

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: DWDM16MDRU
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: paper box with foam
Delivery Time: 5-8 work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 100000 Channel per month
Detailed Product Description
Product Name: Optic DWDM Connector: LC/PC
Package: Rack Mount 1U Wavelength: C21~C36
Channel Number: 16CH Channel Spacing: 100Ghz
High Light:

sfp fiber optic transceiver


sfp transceiver modules

Rackmountable 16 Channel Fiber Optic DWDM Modules

100GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. This Rackmountable 16 Channel Fiber Optic DWDM Modules provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.




  • Low Insertion Loss
  • Wide pass band
  • High channel
  • High stability and reliability
  • Epoxy free on optical path
  • Channel Add/Drop
  • DWDM Network
  • Wavlength Routing
  • CATV fiberoptic System
  • Fiber optical amplifier



Prameters Specification Unit
Channel Number 16 -
Channel Space 100 Ghz
Operating Wavelength 1520~1570 nm
Center Wavelength(Channel) C21-C36 CH
C45-C60 CH
C41-C56 CH
Channel Passband ITU +0.11 nm
Passband Ripple ≤ 0.50 dB
Insertion Loss DWDM Channel ≤3.5 dB
EXP Port ≤3.0 dB
Monitor 21 dB
Isolation (adjacent channel) 30 dB
Isolation (non-adjacent channel 45 dB
Polarization Dependent Loss ≤0.25 dB
Polarization Mode Dispersion ≤ 0.15 ps
Wavelength Thermal Stability 0.002 nm/°C
Insertion Loss Thermal Stability 0.005 dB/°C
Return Loss 45 dB
Directivity 55 dB
Power Handling 300 mW
Operation Humidity 5~95 RH%
Tensile Load 5 N
Operating Temperature -40 to 85 oC
Storage Temperature -40 to 85 oC
Fiber Type Corning G657A1 fiber with Tight Buffer Fiber -
Connector Type LC/UPC -
Package Dimensions 19" 1U Rackmount mm




Rackmountable 16 Channel Fiber Optic DWDM Modules 0
