| Product Name: | Planar DWDM | Connector: | LC/PC |
|---|---|---|---|
| Type: | Two Fiber | Package: | 19“ 1U Rack |
| Channel Number: | 40CH | Channel Spacing: | 100Ghz |
| High Light: | sfp fiber optic transceiver,sfp transceiver modules |
||

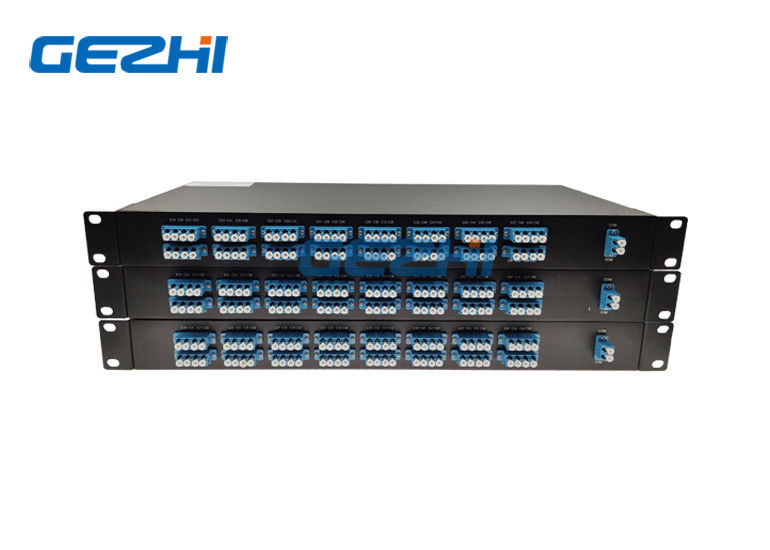

Planar DWDM Components 40 Channel 100G Athermal AWG
Athermal AWG (AAWG)provide excellent optical performance, high reliability, ease of fiber handling and power saving solution in a compact package. The 40Channel working over dual network fiber. We can also offer different product packages, inluding special metal box and 19” 1U rack mount.
|
Features |
Applications |
|
|
Specifications
| Parameters | Condition | Specs | Units | ||
| Min | Typ | Max | |||
| Number of Channels | 41 | ||||
| Number Channel Spacing | 100GHz | 100 | GHz | ||
| Cha. Center Wavelength | ITU frequency. | C -band | nm | ||
| Clear Channel Passband | ±12.5 | GHz | |||
| Wavelength Stability | Maximum range of the wavelength error of all channels and temperatures in average polarization. | ±0.05 | nm | ||
| -1 dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each channel | 0.24 | nm | ||
| -3 dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each channel | 0.43 | nm | ||
| Optical Insertion Loss at ITU grid | Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations. | 4.5 | 6.0 | dB | |
| Adjacent Channel Isolation | Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels. | 25 | dB | ||
| Non-Adjacent, Channel Isolation | Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels. | 29 | dB | ||
| Total Channel Isolation | Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of all other channels, including adjacent channels. | 22 | dB | ||
| Insertion Loss Uniformity | Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures. | 1.5 | dB | ||
| Directivity(Mux Only) | Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n | 40 | dB | ||
| Insertion Loss Ripple | Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port | 1.2 | dB | ||
| Optical Return loss | Input & output ports | 40 | dB | ||
| PDL/Polarization Dependent Loss in Clear Channel Band | Worst-case value measured in ITU band | 0.3 | 0.5 | dB | |
| Polarization Mode Dispersion | 0.5 | ps | |||
| Maximum Optical Power | 23 | dBm | |||
|
MUX/DEMUX input/ output Monitoring range |
-35 | +23 | dBm | ||
IL Represents the worst case over a +/-0.1nm window around the ITU wavelengt
PDL was measured on average polarization over a +/- 0.1nm window around the ITU wavelength.
Ordering Part Code Sequence
| AWG | X | XX | X | XXX | X | X | X | XX |
| Band | Number of Channels | Spacing | 1st Channel | Filter Shape | Package | Fiber Length | In/Out Connector | |
|
C=C-Band L=L-Band D=C+L-Band X=Special |
16=16-CH 32=32-CH 40=40-CH 48=48-CH XX=Special |
1=100G 2=200G 5=50G X=Special |
C60=C60 H59=H59 C59=C59 H58=H58 XXX=special |
G=Gaussian B=Broad Gaussiar F=Flat Top |
M=Module R=Rack X=Special |
1=0.5m 2=1m 3=1.5m 4=2m 5=2.5m 6=3m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC 7=ST/UPC S=Specify |
