Product Details:
Payment & Shipping Terms:
|

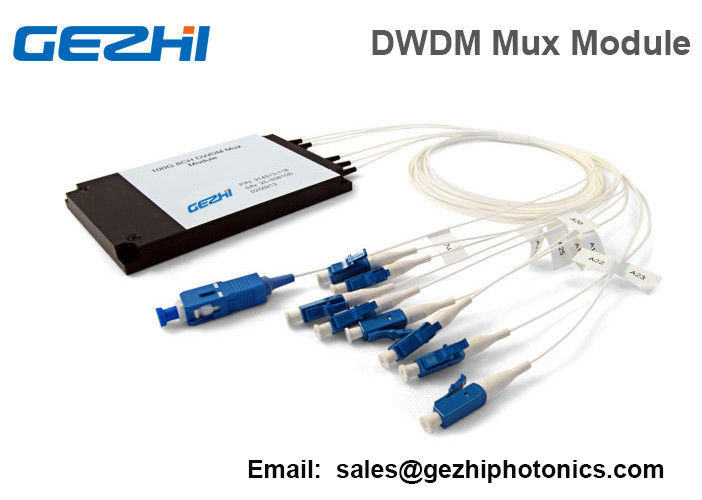

| Product Name: | 200Ghz DWDM | Channel Number: | 8 Channels |
|---|---|---|---|
| Wavelength: | ITU Grid | Connector: | LC/UPC |
| Fiber Type: | Simplex | Application: | Fiber Channel |
| High Light: | dense wave division multiplexer,fiber optic multiplexer |
||
Technical Specs for 200GHz DWDM
| Parameter | Unit | Value | ||||
| Channels Number | - | 2 | 4 | 8 | 16 | 20 |
| Channel Central Wavelength | nm | ITU-T Grid | ||||
| Passband at 0.5dB | nm | ≥0.6 | ||||
| Pass band | nm | λITU±0.25 | ||||
| Pass band Flatness | dB | ≤0.5 | ||||
| Insertion Loss (Typ.) | dB | 1.2 | 2.0 | 4.2 | 9.0 | 16.8 |
| Insertion Loss (Max.) | dB | 1.4 | 2.6 | 5.0 | 9.8 | 19.4 |
| Adjacent Channel Isolation | dB | ≥25 | ||||
| Non-adjacent Channel Isolation | dB | ≥40 | ||||
| Return Loss | dB | ≥45 | ||||
| Polarization Mode Dispersion | ps | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.15 | ≤0.15 |
| Polarization Dependent Loss | dB | ≤0.10 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.25 |
| Directivity | dB | ≥50 | ||||
| Operation Temperature | °C | -5~+70 | ||||
| Storage Temperature | °C | -40~+85 | ||||
| Package Dimension | mm |
ABS box G: 100X80X10, H: 125X96X16 I: 141X115X18, O: customized |
||||
