Product Name:	Micro Optical Switch	Wavelength:	1260~1650nm
Channel:	1x1	Control Type:	Latching Or Non-Latching
Connector:	LC/SC/FC/ST (PC Or APC)	Application:	MAN
Highlight:	fiber optic switch , optical fiber switch

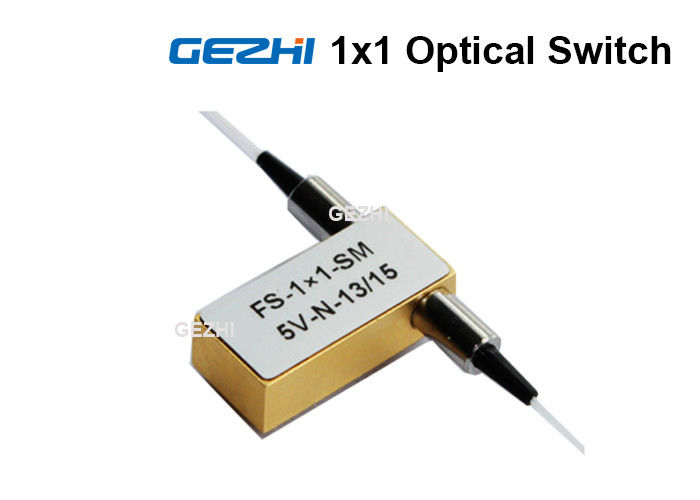

Micro 1x1 Mechanical Optical Switches

GEZHI Photonics 1x1 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.

GEZHI Photonics’ 1x1 Mechanical Optical Switch support all wavelength at 1260nm~1650nm or Multimode 850nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

Unmatched Low Cost
Low insertion Loss
Hig Channel Isolation
High Stability and reliability

Specification

Parameters		GZ-FSW-1×1
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating avelength	nm	850/1300	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:0.5 Max:0.8	Typ:0.4 Max:0.6
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27.0×(W)12.0×(H)8.2 customization is available.

Pins

Type	State	Optical Route	Electric Drive				Status Sensor
1×1			Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	A	Light close	--	--	GND	V+	Close	Open	Open	Close
Latching	B	P1-P2	V+	GND	--	--	Open	Close	Close	Open
Non-latching	A	Light close	--	--	--	--	Close	Open	Open	Close
Non-latching	B	P1-P2	V+	--	--	GND	Open	Close	Close	Open

Optical Route

Status A	Status B

Order Information

Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
S=SM M=MM	85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others	3=3V 5=5V	L=Latching N=Non- Latching	5=50/125 6=62.5/125 9=9/125 X=Others	25=250um 90=900um 20=2.0mm 30=3.0mm X=Others	1=1m 2=1.5m X=Others	0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC
