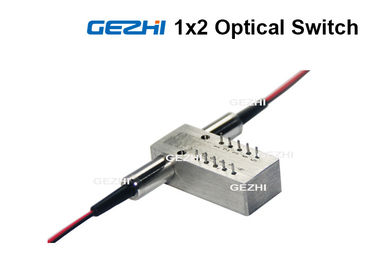

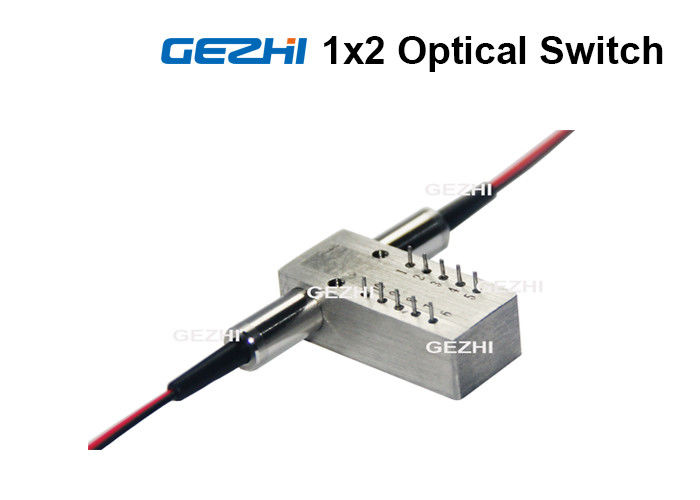

LC/PC Connector 1x2 Mechanical Optical Switch Low Insertion Loss

LC/PC Connector 1x2 Mechanical Optical Switch Low Insertion Loss
LC/PC Connector 1x2 Mechanical Optical Switch Low Insertion Loss

Large Image :  LC/PC Connector 1x2 Mechanical Optical Switch Low Insertion Loss

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-1x2 Optical Switch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 2pcs in a foam with paper Box
Delivery Time: 2~7working days
Supply Ability: 60000pcs per month
Detailed Product Description
Product Name: Fiber Optical Switch Wavelength: 1310/1550nm
Channel: 1x2 Control Type: Non-Latching
Connector: LC/SC/FC/ST (PC Or APC) Application: Optical Network
High Light:

optical switch module

,

optical fiber switch

LC/PC Connector Optic Switch Low Insertion Loss High Stability And Reliability



GEZHI Photonics 1x2 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.

GEZHI Photonics’ 1x2 Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.





Features

  • Unmatched Low Cost
  • Low insertion Loss
  • Hig Channel Isolation
  • High Stability and reliability


Specification

Parameters

 GZ-FSW-1×2
Wavelength Rangenm850±40/1300±401260~1650
Operating avelengthnm850/13001310/1490/1550/1625/1650
Insertion LossdBTyp:0.8 Max:1.2Typ:0.5 Max:0.8
Return LossdBMM≥30 SM≥50
CrosstalkdBMM≥35 SM≥55
PDLdB≤0.05
WDLdB≤0.25
TDLdB≤0.25
RepeatabilitydB≤±0.02
Power Supplyv3.0 or 5.0
Lifetimetimes≥107
Switch Timems≤8
Transmission PowermW≤500
Operating Temperature-20~+70
Storage Temperature-40~+85
Weightg16
Dimensionmm(L)27.0×(W)12.0×(H)8.2 customization is available.


Pins

ParametersPinsElectric DriveStatus Sensor
1x2Optical Path156102-33-47-88-9
latchingP1-P2---- --CloseOpenOpenClose
P1-P3V+GND----OpenCloseCloseOpen
Non-latchingP1-P2--------CloseOpenOpenClose
P1-P3V+----GNDOpenCloseCloseOpen


Optical Route

Status OneStatus Two


                 LC/PC Connector 1x2 Mechanical Optical Switch Low Insertion Loss 0



                     LC/PC Connector 1x2 Mechanical Optical Switch Low Insertion Loss 1



Order Information

ModeWavelengthVoltage TypeControl ModelFiber TypeFiber DiameterFiber LengthConnector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
