Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1x4 Optical Splitter | Wavelength: | 1260~1620nm |
|---|---|---|---|
| Type: | 1x4 | Package: | Stainless Steel Tube |
| Connector: | SC/UPC | Application: | GPON/EPON System |
| High Light: | fiber optic beam splitter,fiber optic cable splitter |
||
GEZHI PLC splitter is a plannar lightwave circuit splitter used as a part of Ethernet passive optical Network (EPON). Its also a passive component that connects OLT with ONU. Its fuction is to distribute data and integrate uplink data.
GEZHI Optical Splitter comes with one uplink fiber ports. Optical signals from the downlink fiber port are distributed to the sole uplink fiber port.
When the optical signals are transmitted from one uplink fiber port to downlink fiber ports, optical power will be lowered, and vice versa. Optical signal strength from all downlnk fiber ports can be the same or different.
The PLC splitter is mounted in a fiber distribution box indoors or outdoors. A second-leverl or multilevel splitter is supported in case of insufficient fiber resourcsed or the dispersed distribution of MDU.
This fiber-optic communication equipment supports the maximum splitting ratio up to 1:32. It has numerous advantages such as small size, wide wavelength range low insertion loss, low PDL, high return loss, uniform splitting ratio and more.
Features:
Application

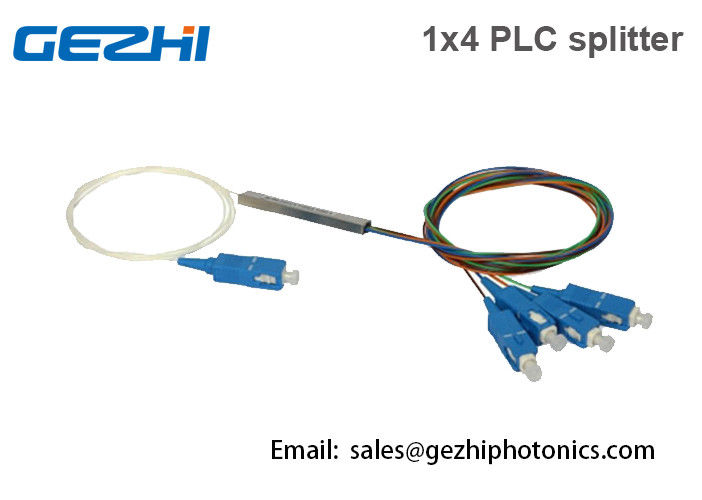

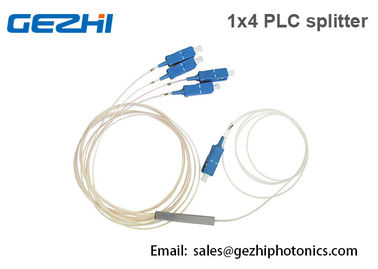

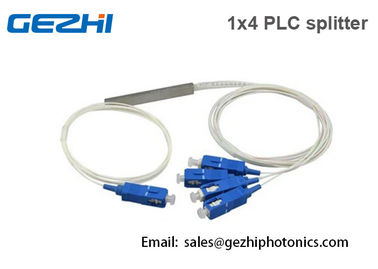

1x4 PLC Splitter with SC/PC Specification
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | |
| Operating Wavelength (nm) | 1260～1650 | |||||||
| Fiber Type | G657A1 or customer specified | |||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 | |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | |
| Polarization Dependent Loss(dB) | 0.1 | 0.1 | 0.1 | 0.20 | 0.25 | 0.30 | 0.4 | |
| Return Loss (dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
|
Temperature Stability (-40～85 ℃)(dB) |
0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40～80 | |||||||
| Storage Temperature (℃) | -40～85 | |||||||
| Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A | |
| Module Dimension (mm) | 100×80×10 | 120×80×18 | 141×115×18 | |||||
| Mini-Module Dimension (mm) | 60×4×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A | |

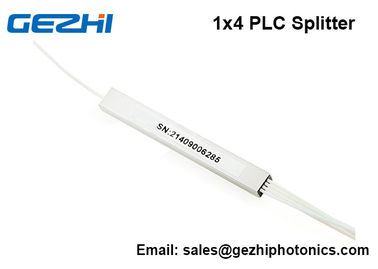

1x4 PLC Splitter with SC/UPC connector Dimensions
Package
Ordering Information
| PLCS | - | - | - | - | - | - | - |
| Structure |
Fiber Type |
Package | Input | Output | Length | Connector | |
| Structure | 0101=1x1, 0202=2x2, ..., 0164=1x64, 0264=2x64 | ||||||
| Fiber Type | 1=G652D, 2=G657A1, 3=G657A2 | ||||||
| Package Dimension | A1, A2,...A12, D, E, F, K, U, G, C, T, R, X | ||||||
| Input Type |
B=250μm Bare Fiber ,L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
||||||
| Output Type |
B=250μm Bare Fiber , L=900µm Loose tube, S=2.0mm, R=3.0mm, F=splitter, 0=Adapter |
||||||
| Pigtail Length |
05=0.5m, 10=1.0m, 100=100m, 0=Adapter, 15/10=1.5m input/1.0m output, X=Others |
||||||
| Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, MPA=MPO/APC, FU/FA=FC/UPC input / FC/APC output, 00=None, X=Others |
||||||
