Product Details:
Payment & Shipping Terms:
|
| ITEM Name: | GE SFP Transmitter And Receiver | Datarate: | 1000base |
|---|---|---|---|
| Wavelength: | 1550nm | Distance: | 120km |
| Connector: | LC | Application: | GE Switch |
| High Light: | sfp fiber optic transceiver,sfp transceiver modules |
||

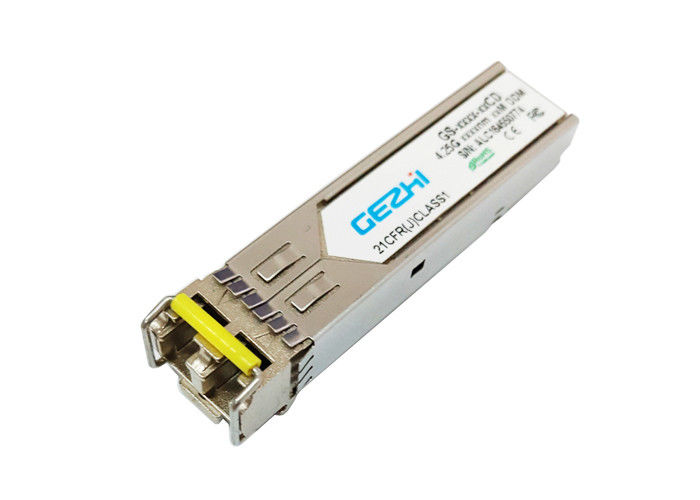

GE 1550nm-ZX Multimode SFP Fiber Module 120km Distance With LC Connector
GEZHI SFP optical transceiver are compliant with MSA SFP specification. SFP if the next generation of GBIC and about half the size of the GBIC. It has several names which are used in the industry, such as: SFP, GLC and mini-GBIC. Most network vendors are using this form factor for their 1G transmission. In addition, other protocols can be used such as Fiber Channel and STM-x/OC-x.
1GE SFP optics come in 5 different versions: T, SX, LX, EX and ZX. The SX version will work on Multi Mode fiber, the other 3 work only on Single Mode fiber. The LX will cover a max of 10km, EX of 40km and the ZX of 80.
Features
♦ Dual data-rate of 1.25Gbps/1.063Gbps operation
♦ 1550nmDFB laser and APD photodetector for 120km transmission
♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
♦ Digital Diagnostic Monitoring:
♦ Internal Calibration or External Calibration
♦ Compatible with SONET OC-24-LR-1
♦ Compatible with RoHS
♦ +3.3V single power supply
♦ Operating case temperature range of 0°C to +70°C(Commercial)
Application
♦ Gigabit Ethernet
♦ Fiber Channel
♦ Router/Server interface
♦ Switch to Switch interface
♦ Switched backplane applications
♦ Other optical transmission systems
Specification
| P/N | GS-1255-120CD |
| Datarate | 1.25Gbps |
| Wavelenght | 1550nm |
| Distance | 120km |
| Transmitter | DFB |
| Receiver | APD |
| DDM/DOM | Yes |
| Media | SMF |
| Operating Temperature | 0°C to +70°C |
Competitive Advantages:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
