Product Details:
Payment & Shipping Terms:
|
| Product Name: | Filter DWDM | Type: | Dual Fiber |
|---|---|---|---|
| Package: | LGX Cassette | Connector: | LC/PC |
| Application: | Data Center | Wavelength: | C21~C28 |
| High Light: | sfp optical transceivers,sfp transceiver modules |
||

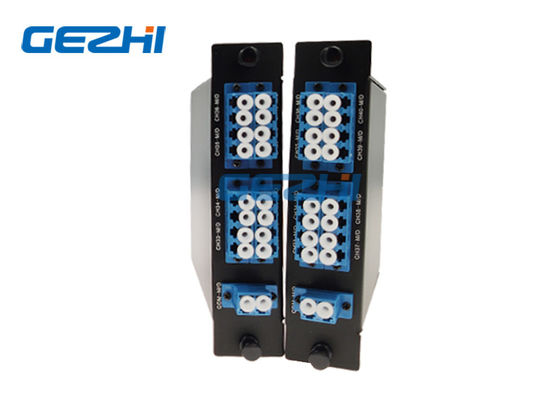

Fiber optical filters 8CH DWDM mux demux module
Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. The Fiber optical filters 8CH DWDM mux demux module provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.
|
Features |
Applications |
|
|
Specifications
| Parameters | Value | ||||||
| Channel Space (GHz) | 100 | 200 | |||||
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 | |||||
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 | |||||
| IL (dB) | 1.8 | 2.5 | 3.5 | 1.7 | 2.9 | 3.8 | |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation (dB) | Adjacent Channel | 25 | 28 | ||||
| Non-Adjacent Channel | 40 | ||||||
| PDL (dB) | 0.2 | ||||||
| PMD (ps) | 0.1 | ||||||
| RL (dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 300 | ||||||
| Operating Temperature (°C) | -20~75 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| BOX Package (mm) | 100*80*10 or 140*115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19’’ Rack mount Package | 1U | ||||||
