| Product Name: | 1x8 Compact CWDM | Channel Number: | 8 Channel |
|---|---|---|---|
| Wavelength: | 1471~1611nm | Connector: | LC/SC/FC/ST (PC Or APC) |
| Fiber Type: | Simplex | Application: | MAN (Metropolitan Area Network) |
| High Light: | cwdm module,cwdm multiplexer |
||

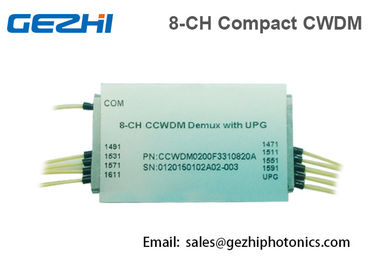

Fiber CCWDM Module 1x8 Channels optical Multiplexer Mini Size
Compact Coarse Wavelength Division Multiplexer (CCWDM) is expanding the bandwidth of Metro/Access communications networks. GEZHI Photonics' CCWDM is based on thin film filter technology and metal bonding micro optic packaging. GEZHI Photonics'provides high quality CCWDM with flat channel bandwidth, flexible channel configuration, low insertion loss and high isolation. It is designed to upgrade capacity easily as the system grows. All Fooxtek products are epoxy-free in the optical path.
Features
Application
Parameters:
| Parameter | Value | |||||||
| Channel Number | 4 | 8 | 8(+E1) | 8(+E2) | ||||
| Central Wavelength (nm) | 1270,1290...1610 or 1271,1291...1611 | |||||||
| Pass Band (nm) | Channel | Min. | +/-6.5 | |||||
|
Upgrade Port |
Min. | - | 1310+/-50 | 1260~1457 | ||||
|
Isolation(dB) |
Mux |
Adjacent Channel |
Min. | 30 | ||||
|
Non Adjacent Channel |
Min. | 40 | ||||||
|
Upgrade Port |
Min. | 15 | ||||||
| Demux |
Adjacent Channel |
Min. | 30 | |||||
|
Non Adjacent Channel |
Min. | 40 | ||||||
|
Upgrade Port |
Min. | 15 | ||||||
|
Insertion Loss (dB) |
Channel | Max. | 1.0 | 1.5 | 1.6 | 1.8 | ||
|
Upgrade Port |
Max. | - | 1.2 | |||||
| Ripple in Pass Band (dB) | Max. | 0.3 | ||||||
| Directivity (dB) | Min. | 50 | ||||||
|
Polarization Dependence Loss (dB) |
Max. | 0.15 | ||||||
|
Polarization Mode Dispersion (GD) ps |
Max. | 0.1 | ||||||
| Return Loss (dB) | Min. | 45 | ||||||
| Fiber Type |
Coming SMF-28 with 900mm loose tube |
|||||||
| Fiber Length (m) | 1.0+/-0.1 | |||||||
| Power Handling (mW) | Max. | 500 | ||||||
| Operating Temp. (°C) | -10~+70 | |||||||
| Storage Temp. (°C) | -40~+85 | |||||||
| Package Dimensions (mm) | L44xW28xH26 | |||||||
Note:
1. All specifications include the effect of operating temperature and all states of polarization.
2. Values referenced without connectors and insertion losses for a connector-pair are 0.20dB (typical) and 0.30dB (max).
3. Fiber length includes rubber boot and excludes connector.
Typical IL over -40 to 85C of 8ch CCWDM
Paging Dimensions :
CCWDM Application on FTTA
Order Information:
| CCWDM8- | XXXX- | X- | X- | XX- | X- | X |
| Wavelength | Grade | Pigtail Type | Length | connector | package | |
|
1471 1491 1611 |
P A |
0=bare fiber 1=900um loose tube 2=2mm cable 3=3mm cable |
05=0.5m 10=1.0m 15=1.5m |
0=none 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC 6=Others |
0=Standard 1=Special |
