Product Details:
Payment & Shipping Terms:
|
| Product Name: | SFP BIDI Module | Datarate: | 1000Base-BX |
|---|---|---|---|
| Wavelength: | TX1310nm/RX1490nm | Distance: | 10km |
| Connector: | Single LC | DDM/DOM: | Yes |
| High Light: | sfp fiber optic transceiver,sfp transceiver modules |
||

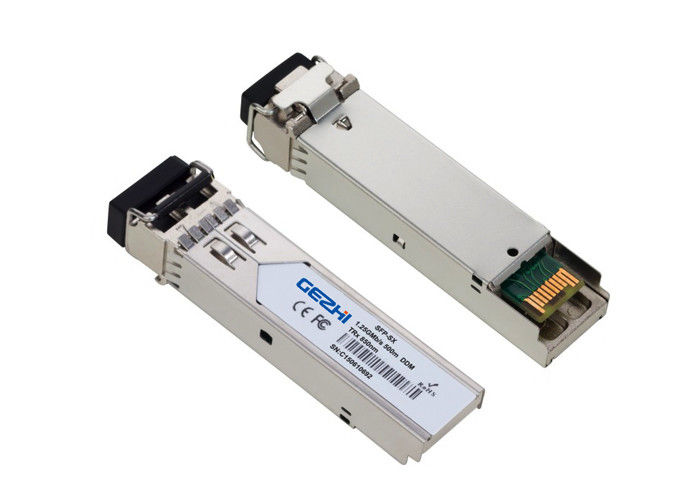

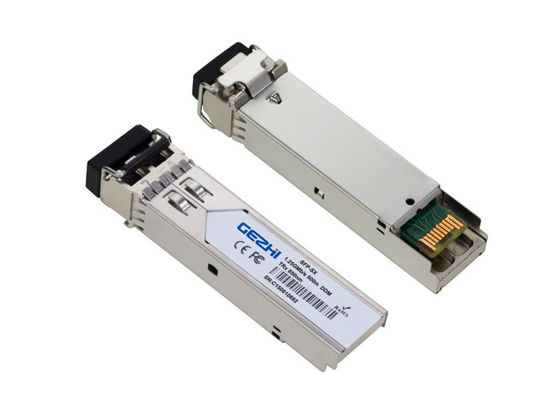

eSFP Module 1000base-bx-u TX1310nm / RX1490nm
Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490,10 km, LC)
The eSFP, GE, BIDI Single-mode Module (TX1310/RX1490,10 km, LC) is Functional in its intended equipments.
Features:
♦ Dual data-rate of 1.25Gbps/1.063Gbps operation
♦ 1310nm FP laser and PIN photodetector for 10km transmission
♦ Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
♦ Digital Diagnostic Monitoring: Internal Calibration or External Calibration
♦ Compatible with SONET OC-24-LR-1
♦ Compatible with RoHS
♦ +3.3V single power supply
♦ Operating case temperature range of 0°C to +70°C (Commercial)
Application
Specification:
| P/N | / |
| Datarate | 1.25Gbps |
| Wavelenght | TX1310nm/RX1490nm |
| Distance | 10km |
| Transmitter | FP |
| Receiver | PIN |
| DDM/DOM | Yes |
| Media | SMF |
| Operating Temperature | 0°C to +70°C |
Competitive Advantages:
