EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube

EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube
EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube

Large Image :  EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-1x32 PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 2pcs in a foam with paper Box
Delivery Time: 2~7working days
Supply Ability: 80000pcs per month
Detailed Product Description
Product Name: Mini PLC Splitter Wavelength: 1260~1620nm

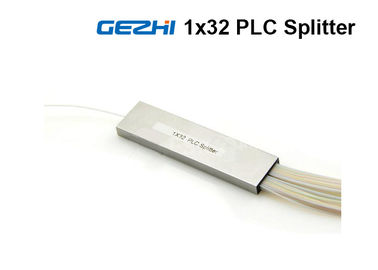

Type: 1x32 Package: Stainless Steel Tube
Connector: LC/SC/FC/ST (PC Or APC) Application: LAN And CATV System
High Light:

fiber optic beam splitter

,

fiber optic cable splitter

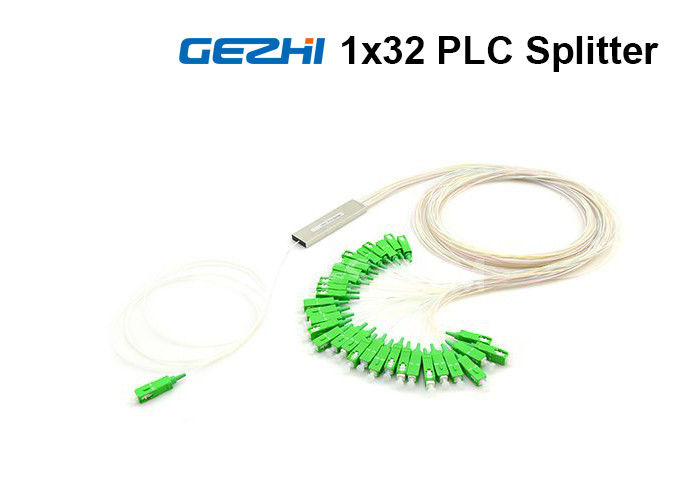

EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube

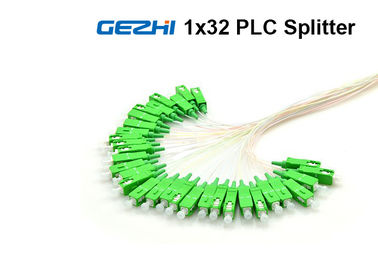

1 input and 32 output fibers with an even split ratio, SC/APC, 900μm fiber

GEZHi 1x32 Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

GEZHI Photonics PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 bare type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1x32 PLC splitters with SC/APC Connector Device are used for small space that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.

The 1×32 Blockless Fiber PLC Splitter supports G.657A1 Fiber, 900μm input and output fiber, and SC, LC, FC & ST connectors for choice.



Features:

  • Compact Design
  • Low Insertion loss & PDL
  • High Reliability and Stability
  • Good channel-to-channel uniformity

Application

  • Data Communications
  • LAN and CATV System
  • FTTX Deployment
  • FTTH Network
  • Optical Signal Distribution
  • Passive Optical Networks (PON)
  • Measuring System and Laser System
  • Outside Plant Equipments
  • DWDM and CWDM systems


1x32 PLC Splitter with SC/APC ​Specification

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.0 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.1 0.1 0.1 0.20 0.25 0.30 0.4
Return Loss (dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.3 0.5 0.5 0.5

Temperature Stability

(-40~85 ℃)(dB)

0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40~80
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 N/A
Module Dimension (mm) 100×80×10 120×80×18 141×115×18
Mini-Module Dimension (mm) 60×4×4 60×7×4 60×7×4 60×12×4 80×20×6 100×40×6 N/A



1x32 PLC Splitter with SC/APC connector Dimensions

EPON 1x32 Optical Cable PLC Splitter 1 Meter With Stainless Steel Tube 0
