Product Name: | SM Optical Switches | Wavelength: | SM 1260~1650nm |
---|---|---|---|
Type: | Non-latching | Cable: | 900um Loose Tube |
Length: | 1.0 Meter | Connector: | LC/UPC |
High Light: | sfp optical transceivers,sfp fiber optic transceiver |

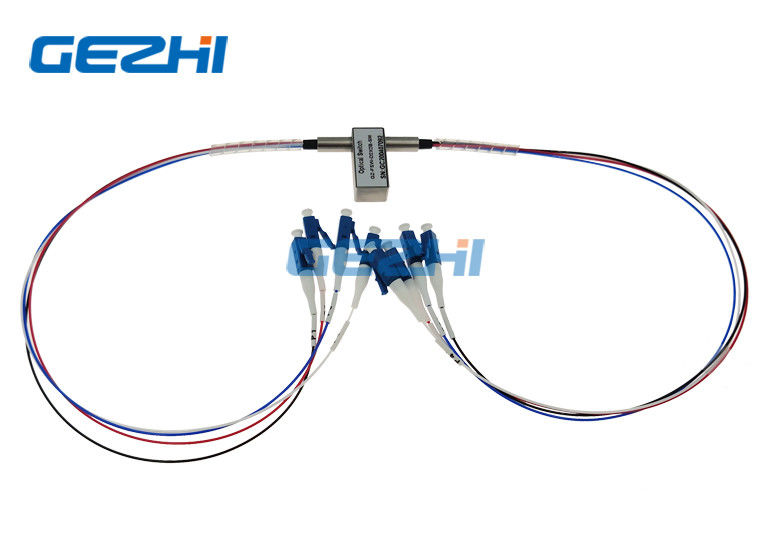

Duplex 2x2 Bypass SM Optical Switches
GEZHI Duplex 2x2 Bypass SM Optical Switches is a optical components 2 state optical route.
Features
|
Applications
|
Specification
Parameters | GZ-D2×2B | ||
Wavelength Range | nm | 850±40/1300±40 | 1260~1650 |
Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
Insertion Loss | dB | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
Return Loss | dB | MM≥30 SM≥50 | |
Crosstalk | dB | MM≥35 SM≥55 | |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
TDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Power Supply | v | 3.0 or 5.0 | |
Lifetime | times | ≥107 | |
Switch Time | ms | ≤8 | |
Transmission Power | mW | ≤500 | |
Operating Temperature | ℃ | -20~+70 | |
Storage Temperature | ℃ | -40~+85 | |
Weight | g | 16 | |
Dimension | mm | (L)27.0×(W)12.0×(H)8.2 customization is available. |
Optical Route
Status One | Status Two |
![]() |
![]() |
Apllication
Pins
Type | State | Pin definition | Power | Condition monitoring | ||||||
D2x2B | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | ||
Non-latching | A |
P1-P3 P1’-P3’ |
-- | -- | -- | -- | Close | Open | Open | Close |
B |
P1-P4,P2-P3 P1’-P4’,P2’-P3’ |
V+ | -- | -- | GND | Open | Close | Close | Open | |
Latching | A |
P1-P3 P1’-P3’ |
-- | -- | GND | V+ | Close | Open | Open | Close |
B | P1-P4,P2-P3 | V+ | GND | -- | -- | Open | Close | Close | Open |
Dimension
Order Information
Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None |
