Product Name: | Optical Transmitter And Receiver | Datarate: | 1000base |
---|---|---|---|
Wavelength: | 850nm | Distance: | 550 Meter |
Connector: | Duplex LC | Type: | Dual Fiber Tansmitter |
High Light: | sfp fiber optic transceiver,sfp transceiver modules |

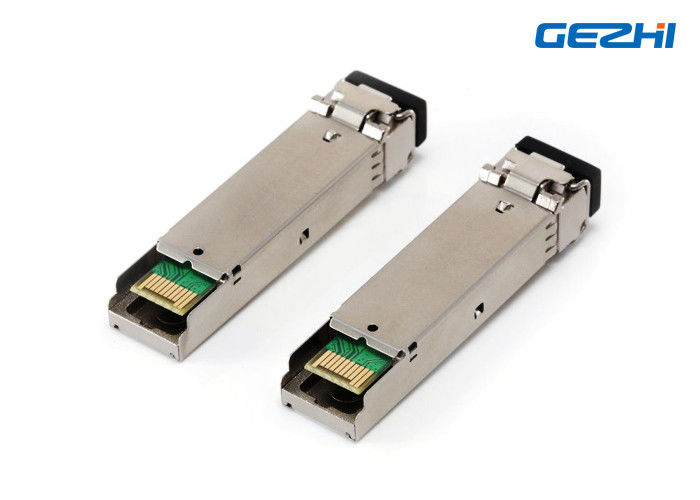

Dual LC / PC Connector SFP Optical Transceivers 850nm Wavelength
GEZHI SFP optical transceivers are used for Gigabit Ethernet and come in a wide variety of transmitters/receivers for different distances and fiber types as well as conversion to RJ-45 (copper). GEZHI SFP optics are compliant with MSA SFP specification. SFP fiber module if the next generation of GBIC and about half the size of the GBIC.
Features:
♦ Dual data-rate of 1.25Gbps/1.063Gbps operation
♦ 850nmVCSEL laser and PIN photodetector for 550m transmission
♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
♦ Digital Diagnostic Monitoring:
♦ Internal Calibration or External Calibration
♦ Compatible with SONET OC-24-LR-1
♦ Compatible with RoHS
♦ +3.3V single power supply
♦ Operating case temperature range of 0°C to +70°C(Commercial)
Application
♦ Gigabit Ethernet
♦ Fiber Channel
♦ Router/Server interface
♦ Switch to Switch interface
♦ Switched backplane applications
♦ Other optical transmission systems
Specification:
P/N | GS-1285-05CD |
Datarate | 1.25Gbps |
Wavelenght | 850nm |
Distance | 0.5km |
Transmitter | VCSEL |
Receiver | PIN |
DDM/DOM | Yes |
Media | MMF |
Operating Temperature | 0°C to +70°C |
Competitive Advantages:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
