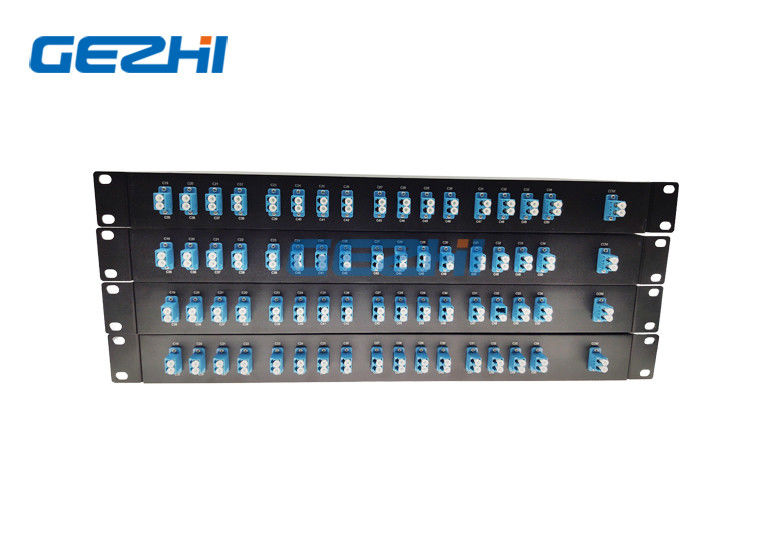

Dual Fiber 32 Channel AAWG Modules

Dual Fiber 32 Channel AAWG Modules
Dual Fiber 32 Channel AAWG Modules

Large Image :  Dual Fiber 32 Channel AAWG Modules

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/RoHS/ISO9001
Model Number: AWG100G32C19LP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: paper box with foam
Delivery Time: 5-8 work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Product Name: AAWG Modules Type: Gaussian
Wavelength: C19~C50 Line: Dual Fiber
Connector: LC/UPC Package: 19" 1U Rack Mount
High Light:

sfp optical transceivers


sfp transceiver modules

Dual Fiber 32 Channel AAWG Modules


The Athermal AWG (Athermal Arrayed Waveguide Grating) Mux/DeMux Modules are part of a series of high performance products based on silica-on-silicon planar technology. It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from 1526nm to 1565nm. GEZHI AAWG DWDM can be used to replace the filter-type DWDM for cases where no power is available.




  • Easy Operation
  • Multi-channel Number
  • MUX/DEMUX Functionality
  • Telcordia GR-1209/1221 compliant
  • Athermal Design, Electrical Power is Not Required
  • Low Insertion Loss,Low PDL,High Channel Isolation
  • DWDM Transmission
  • Building Blocks for ROADM
  • Building Blocks for VMUX
  • Metro Area Networks
  • Long-haul Networks
  • PON Networks




Channel Space (GHz) 50GHz 100GHz
Pass Band Type Flat-top Gaussian Flat-top
Central Wavelength ITU-T Grid
Grade Typ Min Typ Min Typ Min
Channel Number 80/96 32/40/48
Wavelength Accuracy (nm) ±0.04 ±0.05
Pass Band @1dB (nm) >0.2 >0.2 >0.4
Pass Band @3dB (nm) >0.4 >0.4 >0.6
Insertion Loss (dB) <7.0 <6.0 <4.0 <3.5 <6.5 <5.0
Adjacent Crosstalk (dB) >26 >26 >23
Non-Adjacent Crosstalk (dB) >26
Total Crosstalk (dB) >20 >21
Return Loss (dB) >40
Ripple (dB) <1.5 <0.5
Uniformity (dB) <1.5
Polarization Dependent Loss (dB) <0.7 <0.6 <0.5 <0.4
Polarization Mode Dispersion (ps) <0.5
Chromatic Dispersion (ps/nm) ±30 ±20
Operating Temperature (℃) -5~65
Storage Temperature (℃) -40~85

1.All the data above does not include connectors.
2.For more details, please contact our sales.
