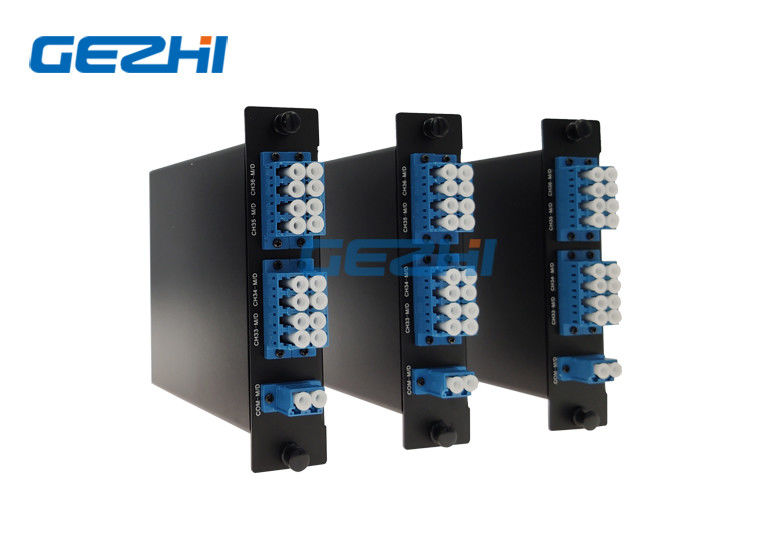

8CH CWDM Fiber Optic Modules

8CH CWDM Fiber Optic Modules
8CH CWDM Fiber Optic Modules

Large Image :  8CH CWDM Fiber Optic Modules

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: CWDM8CHMD47LPLGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: paper box with foam
Delivery Time: 5-8 work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 100000 Channel per month
Detailed Product Description
Features: Low IL Product Name: Fiber Optic Modules
Wavelength: 1471~1611 Channel: 1x8
Type: Duplex Fiber Application: CWDM System
High Light:

sfp optical transceivers

,

sfp transceiver modules

8CH CWDM Fiber Optic Modules



The 8CH CWDM Fiber Optic Modules is designed and manufactured to Telcordial standard. The devices use environmentally stable Thin Film Filters and advanced packaging technology to achieve a wide pass band, low insertion loss, high channel isolation and excellent environmental stability. They can be used individually to perform single channel add or drop functions or can be cascaded into sequence for multi-channel applications in CWDM systems.



Features

Applications

  • High Isolation
  • Low Insertion Loss
  • High Stability and reliability
  • Cellular Application
  • Fiber Optical amplifier
  • Access Network
  • Line Monitoring
  • WDM network
  • Telecommunication



Specification

Parameter
Unit
Value
Channels Number
-
2
4
8
16
Channel Space
nm
20
Central Wavelength
nm
1271~1611
Operating wavelength
nm
1260-1460 or 1460-1620 or 1260-1620
Passband
nm
λITU±6.5
Pass band Flatness
dB
≤0.5
Insertion Loss (Typ.)
dB
0.8
1.3
2.3
4.6
Insertion Loss (Max.)
dB
0.9
1.5
2.5
5.0
Adjacent Channel Isolation
dB
≥30
Non-adjacent Channel Isolation
dB
≥40
Polarization Mode Dispersion
ps
≤0.1
≤0.1
≤0.15
≤0.15

  Polarization Dependent Loss

dB
≤0.1
≤0.15
≤0.2
≤0.25
Return Loss
dB
≥50
Directivity
dB
≥50
Insertion Loss Temperature Sensitivity
dB/°C
0.005
0.005
0.007
0.007
Wavelength Temperature Shifting
nm/°C
0.002
Operation Temperature
°C
-20~+70
Storage Temperature
°C
-40~+85
