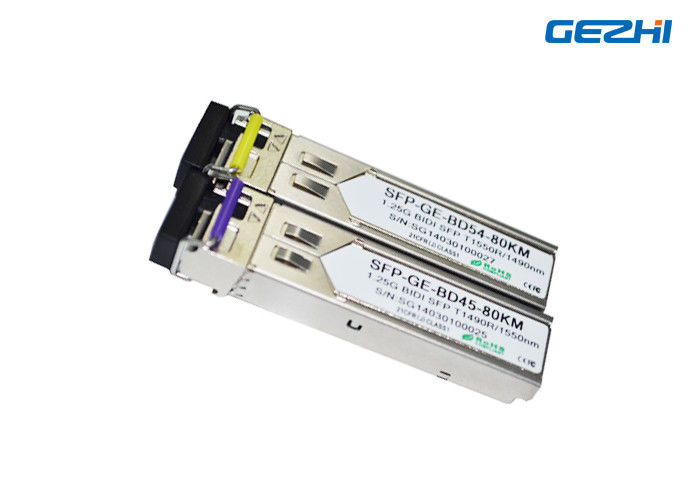

80KM Distance BIDI Optical Transceiver , 1550nm SFP LC SX Transceiver

80KM Distance BIDI Optical Transceiver , 1550nm SFP LC SX Transceiver

GEZHI WDM or BIDI small form-factor pluggable (SFP) is a compact optical transceiver, module used in optical communications for both telecommunication and data bidirectional communications applications. BIDI 1GB optics are a small form factor pluggable module for Single Mode Fast Ethernet, Gigabit, Fiber Channel, SONET/SDH applications.

For a link you need dual different optics, one that sends 1550nm and receives 1310nm and the other side of the fiber, which has a Bidi optic which sends 1310nm and receives 1550nm. In most cases these wavelengths are mentioned as Tx (transmitting) and Rx (receiving) on the label of the optic.

Features

• Dual data-rate of 1.25Gbps/1.063Gbps operation
• 1490nm DFB laser and PIN photodetector for 80km transmission
• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
• Digital Diagnostic Monitoring (DDM/DOM)
• Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1 and RoHS
• +3.3V single power supply
• Operating case temperature range of 0°C to +70°C (Commercial)

Application

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

Specification:

Competitive Advantages

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
