6 Port Fiber Ethernet Switch 4RJ45 UTP port 2Fiber port Media Converter

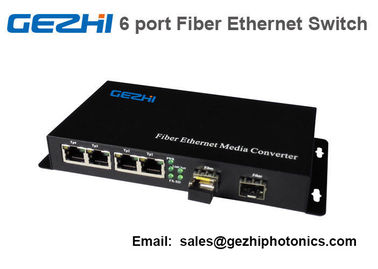

Large Image : 6 Port Fiber Ethernet Switch 4*RJ45 UTP port 2*Fiber port Media Converter

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-Media converter

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a Plastic bag
Delivery Time:	2~7working days
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Multi-port Media Converter	UTP Rate:	10/100/1000Mbps
UTP Port:	4-port RJ45	Wavelength:	TX1310/RX1550
Optical Interface:	LC/SC	Application:	Data Center
High Light:	fiber optic network components , fiber optic cable components

6 Port Fiber Ethernet Switch 4*RJ45 UTP port 2*Fiber port Media Converter

Gigabit SFP media converter convert four 10/100/1000M UTP ports to two 1000M SFP fiber

other manufacturers of MSA compliant SFPs

Overview:

GZ-1000M-TSFP Gigabit SFP media converter convert 10/100/1000M ethernet to SFP fiber. The 10/100/1000M SFP media converter can provide four 10/100/1000M UTP ports and two 1000M SFP slots.Customer can choose different 1000M SFP modules according to requirement, such as single mode or multimode,long transmission distance(1000Base-LX) or short transmission distance(1000Base-SX) or copper SFP module(1000Base-T) .

The 10/100/1000 SFP Media Converters allows flexible network configurations using SFP transceivers supplied by GEZHI, or other manufacturers of MSA compliant SFPs.

Features:

( 6Port SFP Media Converter |6Port Fiber optic Switches )

Supports 10/100/1000Base-T, 1000Base-X protocol.
10M/100M/1000Mbps or automatically negotiation
Multi-mode and Single-mode optional easy installation
Supports Full/Half duplex operation
Supports up to 10k byte JUMBO frame.
Suppots Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.

Product parameter:

Ethernet interface	RJ-45 (coaxial, twisted pair) Support IEEE802.3u 1000Base-TXand 1000Base-FX
Ethernet connector	10/100/1000Base-TX:Four UTP RJ45 connector
Fiber connector	1000Base-FX:Two SFP SLOTS, LC,SC connector
Cable type	non-shielded 5 class cable Cat.5UTP, can transmit 100 meters
Optical fiber category	single-mode 8.3/125, 9/125, 10/125um, multi-mode 50/125, 62.5/125µm
Operating Temp	0~60°C
Storage Temp	-20~85°C
Relative Humidity	5% to 95% non condensing
Power supply	3A 5VDC±5%
Dimension	140mm110mm40mm

Ordering information:

GZ-1000M-TSFP/AC	6ports Gigabit SFP media converter,4*10/100/1000M copper ethernet ports,2 SFP slots,power AC 220V
SFP module	single fiber (WDM),single mode,20km
SFP module	GS-1231-L2CD,1.25G/1000M,duale fiber,single mode,20KM
